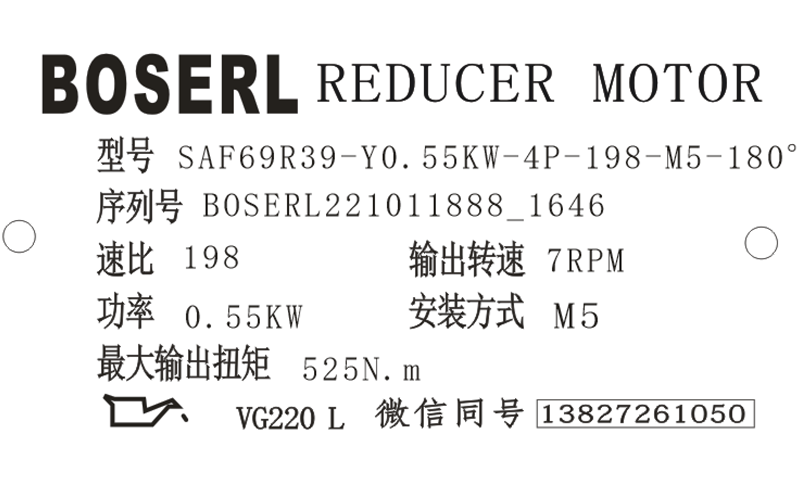

SAF69R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SAF69R39減速機選型樣本。
SAF69R39-Y0.55KW-4P-198-M5-180°
SAF/R：系列代號
69/39：減速機規格代號
Y：電機
0.55KW：電機功率
4P：電機級數
198：減速機傳動比
M5：減速機安裝位置
180°：接線盒位置
SAF69R39減速機轉速低以及剎不住解決方案：
SAF69R39減速機轉速遠低于額定值：電壓過低，用萬用表測電動機輸入電壓，排查維修；負荷過大，若電流大于額定值10%，則是此原因,選用大容量電機；轉子斷條，更換轉子。齒輪減速電機
SAF69R39減速機剎車移動：來令片磨損，換新來令片；間隙過大，調整間隙；負載過大，重新設計；剎車表面歪斜，更換零件；下降重量過大，機構重新設計；選用機型錯誤，選用正確機型；環境溫度過高，改善環境溫度。
SAF69R39減速機電機合格證：
請注意！本產品使用前，務必先做好接地作業，以保證安全使用。
SAF69R39減速機電機機械性能檢驗：振動、噪音、軸跳動、外觀質量；自鎖減速機
SAF69R39減速機電機電氣性能檢驗：
| 序號 | 檢驗項目 | 符合標準 |
| 1 | 絕緣試驗 | 0OMQ/500V | √ |
| 2 | 耐壓試驗 | 800V/3sec | √ |
| 3 | 平均電流 | <10% | √ |
| 4 | 相電阻 | <10% | √ |
| 5 | 型式認定 | 訂單查驗 | √ |
| 6 | 旋轉方向 | 正/反轉 | √ |
SAF69R39減速機電機裝箱檢驗：平鍵一支、軸套一支、使用說明書及產品合格證一份。
SAF69R39減速機電機運行過程中，需要相應的防護措施，注意電機及減電機可能帶電、裸露甚至活動的部件及高溫表面的危險，這些可能導致重傷或者死亡。所有與運輸入庫、安裝/裝配、接線、調試、維修和維護有關的作業須由具備資質的專業人員進行，并務必注意下列事項：與此有關的詳細操作手冊；SAF69R39減速機電機上的警告和安全提示牌；所有其他屬于驅動設備的設計資料、調試指南與接線圖；與設備相關的規定和要求；有關安全和事故防范的國家/地區性規定；嚴格安裝受到損壞的產品；立即向承運公司就損壞進行索賠。伺服電機渦輪渦桿減速機
SAF69R39減速電機型號：
YQSAF67R37-Y63M4，YQSAF67R37-Y71M4，YQSAF67R37-Y80M4，YQSAF67RF37-Y0.12KW，YQSAF67RF37-Y0.18KW，YQSAF67RF37-Y0.25KW，YQSAF67RF37-Y0.37KW，YQSAF67RF37-Y0.55KW，YQSAF67RF37-Y63M4，YQSAF67RF37-Y71M4，YQSAF67RF37-Y80M4，YQSAF67RF37-YB63M4，YQSAF67RF37-YB71M4，YQSAF67RF37-YB80M4，YQSAF67RF37-YDP63M4，YQSAF67RF37-YDP71M4，YQSAF67RF37-YDP80M4，YQSAF67RF37-YE63M4，YQSAF67RF37-YE71M4，YQSAF67RF37-YE80M4，YQSAF67RF37-YEJ63M4，YQSAF67RF37-YEJ71M4，YQSAF67RF37-YEJ80M4，YQSAF67RF37-YEJB63M4，YQSAF67RF37-YEJB71M4，YQSAF67RF37-YEJB80M4，YQSAF67RF37-YP63M4，YQSAF67RF37-YP71M4，YQSAF67RF37-YP80M4，YQSAF67RF37-YPB63M4，YQSAF67RF37-YPB71M4，YQSAF67RF37-YPB80M4，YQSAF67RF37-YPE63M4，YQSAF67RF37-YPE71M4，YQSAF67RF37-YPE80M4，YQSAF67RF37-YSAF63M4，YQSAF67RF37-YSAF71M4，YQSAF67RF37-YSAF80M4，YQSAF67RF37-YVB63M4，YQSAF67RF37-YVB71M4，YQSAF67RF37-YVB80M4，YQSAF67RF37-YVP63M4，YQSAF67RF37-YVP71M4，YQSAF67RF37-YVP80M4，ASAF67R37-Y63M4，ASAF67R37-Y71M4，ASAF67R37-Y80M4，ASAF67RF37-Y0.12KW，ASAF67RF37-Y0.18KW，ASAF67RF37-Y0.25KW，ASAF67RF37-Y0.37KW，ASAF67RF37-Y0.55KW，ASAF67RF37-Y63M4，ASAF67RF37-Y71M4，ASAF67RF37-Y80M4，ASAF67RF37-YB63M4，ASAF67RF37-YB71M4，ASAF67RF37-YB80M4，ASAF67RF37-YDP63M4，ASAF67RF37-YDP71M4，ASAF67RF37-YDP80M4，ASAF67RF37-YE63M4，ASAF67RF37-YE71M4，ASAF67RF37-YE80M4，ASAF67RF37-YEJ63M4，ASAF67RF37-YEJ71M4，ASAF67RF37-YEJ80M4，ASAF67RF37-YEJB63M4，ASAF67RF37-YEJB71M4，ASAF67RF37-YEJB80M4，ASAF67RF37-YP63M4，ASAF67RF37-YP71M4，ASAF67RF37-YP80M4，ASAF67RF37-YPB63M4，ASAF67RF37-YPB71M4，ASAF67RF37-YPB80M4，ASAF67RF37-YPE63M4，ASAF67RF37-YPE71M4，ASAF67RF37-YPE80M4，ASAF67RF37-YSAF63M4，ASAF67RF37-YSAF71M4，ASAF67RF37-YSAF80M4，ASAF67RF37-YVB63M4，ASAF67RF37-YVB71M4，ASAF67RF37-YVB80M4，ASAF67RF37-YVP63M4，ASAF67RF37-YVP71M4，ASAF67RF37-YVP80M4，SSAF67R37-Y63M4，SSAF67R37-Y71M4，SSAF67R37-Y80M4，SSAF67RF37-Y0.12KW，SSAF67RF37-Y0.18KW，SSAF67RF37-Y0.25KW，SSAF67RF37-Y0.37KW，SSAF67RF37-Y0.55KW，SSAF67RF37-Y63M4，SSAF67RF37-Y71M4，SSAF67RF37-Y80M4，SSAF67RF37-YB63M4，SSAF67RF37-YB71M4，SSAF67RF37-YB80M4，SSAF67RF37-YDP63M4，SSAF67RF37-YDP71M4，SSAF67RF37-YDP80M4，SSAF67RF37-YE63M4，SSAF67RF37-YE71M4，SSAF67RF37-YE80M4，SSAF67RF37-YEJ63M4，SSAF67RF37-YEJ71M4，SSAF67RF37-YEJ80M4，SSAF67RF37-YEJB63M4，SSAF67RF37-YEJB71M4，SSAF67RF37-YEJB80M4，SSAF67RF37-YP63M4，SSAF67RF37-YP71M4，SSAF67RF37-YP80M4，SSAF67RF37-YPB63M4，SSAF67RF37-YPB71M4，SSAF67RF37-YPB80M4，SSAF67RF37-YPE63M4，SSAF67RF37-YPE71M4，SSAF67RF37-YPE80M4，SSAF67RF37-YSAF63M4，SSAF67RF37-YSAF71M4，SSAF67RF37-YSAF80M4，SSAF67RF37-YVB63M4，SSAF67RF37-YVB71M4，SSAF67RF37-YVB80M4，SSAF67RF37-YVP63M4，SSAF67RF37-YVP71M4，SSAF67RF37-YVP80M4，XDSAF67R37-Y63M4，XDSAF67R37-Y71M4，XDSAF67R37-Y80M4，XDSAF67RF37-Y0.12KW，XDSAF67RF37-Y0.18KW，XDSAF67RF37-Y0.25KW，XDSAF67RF37-Y0.37KW，XDSAF67RF37-Y0.55KW，XDSAF67RF37-Y63M4，XDSAF67RF37-Y71M4，XDSAF67RF37-Y80M4，XDSAF67RF37-YB63M4，XDSAF67RF37-YB71M4，XDSAF67RF37-YB80M4，XDSAF67RF37-YDP63M4，XDSAF67RF37-YDP71M4，XDSAF67RF37-YDP80M4，XDSAF67RF37-YE63M4，XDSAF67RF37-YE71M4，XDSAF67RF37-YE80M4，XDSAF67RF37-YEJ63M4，XDSAF67RF37-YEJ71M4，XDSAF67RF37-YEJ80M4，XDSAF67RF37-YEJB63M4，XDSAF67RF37-YEJB71M4，XDSAF67RF37-YEJB80M4，XDSAF67RF37-YP63M4，XDSAF67RF37-YP71M4，XDSAF67RF37-YP80M4，XDSAF67RF37-YPB63M4，XDSAF67RF37-YPB71M4，XDSAF67RF37-YPB80M4，XDSAF67RF37-YPE63M4，XDSAF67RF37-YPE71M4，XDSAF67RF37-YPE80M4，XDSAF67RF37-YSAF63M4，XDSAF67RF37-YSAF71M4，XDSAF67RF37-YSAF80M4，XDSAF67RF37-YVB63M4，XDSAF67RF37-YVB71M4，XDSAF67RF37-YVB80M4，XDSAF67RF37-YVP63M4，XDSAF67RF37-YVP71M4，XDSAF67RF37-YVP80M4，WSAF67R37-Y63M4，WSAF67R37-Y71M4，WSAF67R37-Y80M4，WSAF67RF37-Y0.12KW，WSAF67RF37-Y0.18KW，WSAF67RF37-Y0.25KW，WSAF67RF37-Y0.37KW，WSAF67RF37-Y0.55KW，WSAF67RF37-Y63M4，WSAF67RF37-Y71M4，WSAF67RF37-Y80M4，WSAF67RF37-YB63M4，WSAF67RF37-YB71M4，WSAF67RF37-YB80M4，WSAF67RF37-YDP63M4，WSAF67RF37-YDP71M4，WSAF67RF37-YDP80M4，WSAF67RF37-YE63M4，WSAF67RF37-YE71M4，WSAF67RF37-YE80M4，WSAF67RF37-YEJ63M4，WSAF67RF37-YEJ71M4，WSAF67RF37-YEJ80M4，WSAF67RF37-YEJB63M4，WSAF67RF37-YEJB71M4，WSAF67RF37-YEJB80M4，WSAF67RF37-YP63M4，WSAF67RF37-YP71M4，WSAF67RF37-YP80M4，WSAF67RF37-YPB63M4，WSAF67RF37-YPB71M4，WSAF67RF37-YPB80M4，WSAF67RF37-YPE63M4，WSAF67RF37-YPE71M4，WSAF67RF37-YPE80M4，WSAF67RF37-YSAF63M4，WSAF67RF37-YSAF71M4，WSAF67RF37-YSAF80M4，WSAF67RF37-YVB63M4，WSAF67RF37-YVB71M4，WSAF67RF37-YVB80M4，WSAF67RF37-YVP63M4，WSAF67RF37-YVP71M4，WSAF67RF37-YVP80M4，JCSAF67R37-Y63M4，JCSAF67R37-Y71M4，JCSAF67R37-Y80M4，JCSAF67RF37-Y0.12KW，JCSAF67RF37-Y0.18KW，JCSAF67RF37-Y0.25KW，JCSAF67RF37-Y0.37KW，JCSAF67RF37-Y0.55KW，JCSAF67RF37-Y63M4，JCSAF67RF37-Y71M4，JCSAF67RF37-Y80M4，JCSAF67RF37-YB63M4，JCSAF67RF37-YB71M4，JCSAF67RF37-YB80M4，JCSAF67RF37-YDP63M4，JCSAF67RF37-YDP71M4，JCSAF67RF37-YDP80M4，JCSAF67RF37-YE63M4，JCSAF67RF37-YE71M4，JCSAF67RF37-YE80M4，JCSAF67RF37-YEJ63M4，JCSAF67RF37-YEJ71M4，JCSAF67RF37-YEJ80M4，JCSAF67RF37-YEJB63M4，JCSAF67RF37-YEJB71M4，JCSAF67RF37-YEJB80M4，JCSAF67RF37-YP63M4，JCSAF67RF37-YP71M4，JCSAF67RF37-YP80M4，JCSAF67RF37-YPB63M4，JCSAF67RF37-YPB71M4，JCSAF67RF37-YPB80M4，JCSAF67RF37-YPE63M4，JCSAF67RF37-YPE71M4，JCSAF67RF37-YPE80M4，JCSAF67RF37-YSAF63M4，JCSAF67RF37-YSAF71M4，JCSAF67RF37-YSAF80M4，JCSAF67RF37-YVB63M4，JCSAF67RF37-YVB71M4，JCSAF67RF37-YVB80M4，JCSAF67RF37-YVP63M4，JCSAF67RF37-YVP71M4，JCSAF67RF37-YVP80M4，NSAF67R37-Y63M4，NSAF67R37-Y71M4，NSAF67R37-Y80M4，NSAF67RF37-Y0.12KW，NSAF67RF37-Y0.18KW，NSAF67RF37-Y0.25KW，NSAF67RF37-Y0.37KW，NSAF67RF37-Y0.55KW，NSAF67RF37-Y63M4，NSAF67RF37-Y71M4，NSAF67RF37-Y80M4，NSAF67RF37-YB63M4，NSAF67RF37-YB71M4，NSAF67RF37-YB80M4，NSAF67RF37-YDP63M4，NSAF67RF37-YDP71M4，NSAF67RF37-YDP80M4，NSAF67RF37-YE63M4，NSAF67RF37-YE71M4，NSAF67RF37-YE80M4，NSAF67RF37-YEJ63M4，NSAF67RF37-YEJ71M4，NSAF67RF37-YEJ80M4，NSAF67RF37-YEJB63M4，NSAF67RF37-YEJB71M4，NSAF67RF37-YEJB80M4，NSAF67RF37-YP63M4，NSAF67RF37-YP71M4，NSAF67RF37-YP80M4，NSAF67RF37-YPB63M4，NSAF67RF37-YPB71M4，NSAF67RF37-YPB80M4，NSAF67RF37-YPE63M4，NSAF67RF37-YPE71M4，NSAF67RF37-YPE80M4，NSAF67RF37-YSAF63M4，NSAF67RF37-YSAF71M4，NSAF67RF37-YSAF80M4，NSAF67RF37-YVB63M4，NSAF67RF37-YVB71M4，NSAF67RF37-YVB80M4，NSAF67RF37-YVP63M4，NSAF67RF37-YVP71M4，NSAF67RF37-YVP80M4，SWAF67RW37-Y63M4，SWAF67RW37-Y71M4，SWAF67RW37-Y80M4，SWAF67RWF37-Y0.12KW，SWAF67RWF37-Y0.18KW，SWAF67RWF37-Y0.25KW，SWAF67RWF37-Y0.37KW，SWAF67RWF37-Y0.55KW，SWAF67RWF37-Y63M4，SWAF67RWF37-Y71M4，SWAF67RWF37-Y80M4，SWAF67RWF37-YB63M4，SWAF67RWF37-YB71M4，SWAF67RWF37-YB80M4，SWAF67RWF37-YDP63M4，SWAF67RWF37-YDP71M4，SWAF67RWF37-YDP80M4，SWAF67RWF37-YE63M4，SWAF67RWF37-YE71M4，SWAF67RWF37-YE80M4，SWAF67RWF37-YEJ63M4，SWAF67RWF37-YEJ71M4，SWAF67RWF37-YEJ80M4，SWAF67RWF37-YEJB63M4，SWAF67RWF37-YEJB71M4，SWAF67RWF37-YEJB80M4，SWAF67RWF37-YP63M4，SWAF67RWF37-YP71M4，SWAF67RWF37-YP80M4，SWAF67RWF37-YPB63M4，SWAF67RWF37-YPB71M4，SWAF67RWF37-YPB80M4，SWAF67RWF37-YPE63M4，SWAF67RWF37-YPE71M4，SWAF67RWF37-YPE80M4，SWAF67RWF37-YSAF63M4，SWAF67RWF37-YSAF71M4，SWAF67RWF37-YSAF80M4，SWAF67RWF37-YVB63M4，SWAF67RWF37-YVB71M4，SWAF67RWF37-YVB80M4，SWAF67RWF37-YVP63M4，SWAF67RWF37-YVP71M4，SWAF67RWF37-YVP80M4，SAF69R39-Y63M4，SAF69R39-Y71M4，SAF69R39-Y80M4，SAF69RF39-Y0.12KW，SAF69RF39-Y0.18KW，SAF69RF39-Y0.25KW，SAF69RF39-Y0.39KW，SAF69RF39-Y0.55KW，SAF69RF39-Y63M4，SAF69RF39-Y71M4，SAF69RF39-Y80M4，SAF69RF39-YB63M4，SAF69RF39-YB71M4，SAF69RF39-YB80M4，SAF69RF39-YDP63M4，SAF69RF39-YDP71M4，SAF69RF39-YDP80M4，SAF69RF39-YE63M4，SAF69RF39-YE71M4，SAF69RF39-YE80M4，SAF69RF39-YEJ63M4，SAF69RF39-YEJ71M4，SAF69RF39-YEJ80M4，SAF69RF39-YEJB63M4，SAF69RF39-YEJB71M4，SAF69RF39-YEJB80M4，SAF69RF39-YP63M4，SAF69RF39-YP71M4，SAF69RF39-YP80M4，SAF69RF39-YPB63M4，SAF69RF39-YPB71M4，SAF69RF39-YPB80M4，SAF69RF39-YPE63M4，SAF69RF39-YPE71M4，SAF69RF39-YPE80M4，SAF69RF39-YSAF63M4，SAF69RF39-YSAF71M4，SAF69RF39-YSAF80M4，SAF69RF39-YVB63M4，SAF69RF39-YVB71M4，SAF69RF39-YVB80M4，SAF69RF39-YVP63M4，SAF69RF39-YVP71M4，SAF69RF39-YVP80M4。
SAF69R39減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ttgylm.com/product/list-safxiliejiansuji-cn.html
推薦型號：S69減速機
關鍵詞:立式蝸輪蝸桿減速機帶馬達一體機_伺服電機渦輪渦桿減速機_立式蝸桿減速機_GSAF系列減速機_SAF系列減速機_SAF系列減速器_伺服電機渦輪渦桿減速器_伺服渦輪渦桿減速機_立式蝸輪減速機
SAF系列減速機型號：SAF39減速機,SAF49減速機,SAF59減速機,SAF69減速機,SAF79減速機,SAF89減速機,SAF99齒輪減速電機
SAF系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
