SA59減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA59減速器選型樣本。

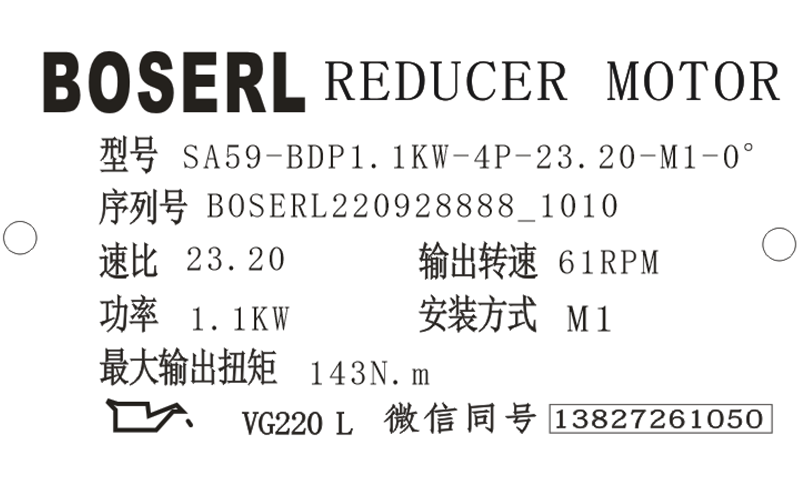

SA59-BDP1.1KW-4P-23.20-M1-0°

SA：系列代號

59：減速機規格代號

BDP：電機

1.1KW：電機功率

4P：電機級數

23.20：減速機傳動比

M1：減速機安裝位置

0°：接線盒位置

SA59減速器逆止器安裝：

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

SA59減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。自鎖減速機

SA59減速器無油位檢查螺栓和安裝蓋：

通過密封螺栓檢查油位:由于SA59減速器無油位螺栓或安裝蓋，因此需要通過檢查孔進行檢查；按照M5或M6的安裝位置防止SA59減速器，即檢查孔朝上；擰出密封螺栓1（見下圖）；將測量標尺垂直通過檢查孔伸入減速器箱體的底部，然后再將測量標尺重新從檢查孔中垂直抽出（見下圖）。

用油標卡尺測出測量標尺上所沾的潤滑油長度（見下圖）。

將側的值“X”與下表中根據安裝位置所列的最小值進行比較，必要情況下調節油位高度；重新擰緊密封螺栓。伺服電機連接減速機

SA59減速器型號：

XDSA57-Y0.18KW，XDSA57-Y0.25KW，XDSA57-Y0.37KW，XDSA57-Y0.55KW，XDSA57-Y0.75KW，XDSA57-Y1.1KW，XDSA57-Y1.5KW，XDSA57-Y100M4，XDSA57-Y2.2KW，XDSA57-Y3KW，XDSA57-Y63M4，XDSA57-Y71M4，XDSA57-Y80M4，XDSA57-Y90M4，XDSA57-YB100M4，XDSA57-YB63M4，XDSA57-YB71M4，XDSA57-YB80M4，XDSA57-YB90M4，XDSA57-YDP100M4，XDSA57-YDP63M4，XDSA57-YDP71M4，XDSA57-YDP80M4，XDSA57-YDP90M4，XDSA57-YE100M4，XDSA57-YE63M4，XDSA57-YE71M4，XDSA57-YE80M4，XDSA57-YE90M4，XDSA57-YEJ100M4，XDSA57-YEJ63M4，XDSA57-YEJ71M4，XDSA57-YEJ80M4，XDSA57-YEJ90M4，XDSA57-YEJB100M4，XDSA57-YEJB63M4，XDSA57-YEJB71M4，XDSA57-YEJB80M4，XDSA57-YEJB90M4，XDSA57-YP100M4，XDSA57-YP63M4，XDSA57-YP71M4，XDSA57-YP80M4，XDSA57-YP90M4，XDSA57-YPB100M4，XDSA57-YPB63M4，XDSA57-YPB71M4，XDSA57-YPB80M4，XDSA57-YPB90M4，XDSA57-YPE100M4，XDSA57-YPE63M4，XDSA57-YPE71M4，XDSA57-YPE80M4，XDSA57-YPE90M4，XDSA57-YS100M4，XDSA57-YS63M4，XDSA57-YS71M4，XDSA57-YS80M4，XDSA57-YS90M4，XDSA57-YVB100M4，XDSA57-YVB63M4，XDSA57-YVB71M4，XDSA57-YVB80M4，XDSA57-YVB90M4，XDSA57-YVP100M4，XDSA57-YVP63M4，XDSA57-YVP71M4，XDSA57-YVP80M4，XDSA57-YVP90M4，XDSA57-YVPEJ100M4，XDSA57-YVPEJ63M4，XDSA57-YVPEJ71M4，XDSA57-YVPEJ80M4，XDSA57-YVPEJ90M4，SA59-Y0.18KW，SA59-Y0.25KW，SA59-Y0.37KW，SA59-Y0.55KW，SA59-Y0.75KW，SA59-Y1.1KW，SA59-Y1.5KW，SA59-Y100M4，SA59-Y2.2KW，SA59-Y3KW，SA59-Y63M4，SA59-Y71M4，SA59-Y80M4，SA59-Y90M4，SA59-YB100M4，SA59-YB63M4，SA59-YB71M4，SA59-YB80M4，SA59-YB90M4，SA59-YDP100M4，SA59-YDP63M4，SA59-YDP71M4，SA59-YDP80M4，SA59-YDP90M4，SA59-YE100M4，SA59-YE63M4，SA59-YE71M4，SA59-YE80M4，SA59-YE90M4，SA59-YEJ100M4，SA59-YEJ63M4，SA59-YEJ71M4，SA59-YEJ80M4，SA59-YEJ90M4，SA59-YEJB100M4，SA59-YEJB63M4，SA59-YEJB71M4，SA59-YEJB80M4，SA59-YEJB90M4，SA59-YP100M4，SA59-YP63M4，SA59-YP71M4，SA59-YP80M4，SA59-YP90M4，SA59-YPB100M4，SA59-YPB63M4，SA59-YPB71M4，SA59-YPB80M4，SA59-YPB90M4，SA59-YPE100M4，SA59-YPE63M4，SA59-YPE71M4，SA59-YPE80M4，SA59-YPE90M4，SA59-YS100M4，SA59-YS63M4，SA59-YS71M4，SA59-YS80M4，SA59-YS90M4，SA59-YVB100M4，SA59-YVB63M4，SA59-YVB71M4，SA59-YVB80M4，SA59-YVB90M4，SA59-YVP100M4，SA59-YVP63M4，SA59-YVP71M4，SA59-YVP80M4，SA59-YVP90M4，SA59-YVPEJ100M4，SA59-YVPEJ63M4，SA59-YVPEJ71M4，SA59-YVPEJ80M4，SA59-YVPEJ90M4，JCSA57-Y0.18KW，JCSA57-Y0.25KW，JCSA57-Y0.37KW，JCSA57-Y0.55KW，JCSA57-Y0.75KW，JCSA57-Y1.1KW，JCSA57-Y1.5KW，JCSA57-Y100M4，JCSA57-Y2.2KW，JCSA57-Y3KW，JCSA57-Y63M4，JCSA57-Y71M4，JCSA57-Y80M4，JCSA57-Y90M4，JCSA57-YB100M4，JCSA57-YB63M4，JCSA57-YB71M4，JCSA57-YB80M4，JCSA57-YB90M4，JCSA57-YDP100M4，JCSA57-YDP63M4，JCSA57-YDP71M4，JCSA57-YDP80M4，JCSA57-YDP90M4，JCSA57-YE100M4，JCSA57-YE63M4，JCSA57-YE71M4，JCSA57-YE80M4，JCSA57-YE90M4，JCSA57-YEJ100M4，JCSA57-YEJ63M4，JCSA57-YEJ71M4，JCSA57-YEJ80M4，JCSA57-YEJ90M4，JCSA57-YEJB100M4，JCSA57-YEJB63M4，JCSA57-YEJB71M4，JCSA57-YEJB80M4，JCSA57-YEJB90M4，JCSA57-YP100M4，JCSA57-YP63M4，JCSA57-YP71M4，JCSA57-YP80M4，JCSA57-YP90M4，JCSA57-YPB100M4，JCSA57-YPB63M4，JCSA57-YPB71M4，JCSA57-YPB80M4，JCSA57-YPB90M4，JCSA57-YPE100M4，JCSA57-YPE63M4，JCSA57-YPE71M4，JCSA57-YPE80M4，JCSA57-YPE90M4，JCSA57-YS100M4，JCSA57-YS63M4，JCSA57-YS71M4，JCSA57-YS80M4，JCSA57-YS90M4，JCSA57-YVB100M4，JCSA57-YVB63M4，JCSA57-YVB71M4，JCSA57-YVB80M4，JCSA57-YVB90M4，JCSA57-YVP100M4，JCSA57-YVP63M4，JCSA57-YVP71M4，JCSA57-YVP80M4，JCSA57-YVP90M4，JCSA57-YVPEJ100M4，JCSA57-YVPEJ63M4，JCSA57-YVPEJ71M4，JCSA57-YVPEJ80M4，JCSA57-YVPEJ90M4，YQSA57-Y0.18KW，YQSA57-Y0.25KW，YQSA57-Y0.37KW，YQSA57-Y0.55KW，YQSA57-Y0.75KW，YQSA57-Y1.1KW，YQSA57-Y1.5KW，YQSA57-Y100M4，YQSA57-Y2.2KW，YQSA57-Y3KW，YQSA57-Y63M4，YQSA57-Y71M4，YQSA57-Y80M4，YQSA57-Y90M4，YQSA57-YB100M4，YQSA57-YB63M4，YQSA57-YB71M4，YQSA57-YB80M4，YQSA57-YB90M4，YQSA57-YDP100M4，YQSA57-YDP63M4，YQSA57-YDP71M4，YQSA57-YDP80M4，YQSA57-YDP90M4，YQSA57-YE100M4，YQSA57-YE63M4，YQSA57-YE71M4，YQSA57-YE80M4，YQSA57-YE90M4，YQSA57-YEJ100M4，YQSA57-YEJ63M4，YQSA57-YEJ71M4，YQSA57-YEJ80M4，YQSA57-YEJ90M4，YQSA57-YEJB100M4，YQSA57-YEJB63M4，YQSA57-YEJB71M4，YQSA57-YEJB80M4，YQSA57-YEJB90M4，YQSA57-YP100M4，YQSA57-YP63M4，YQSA57-YP71M4，YQSA57-YP80M4，YQSA57-YP90M4，YQSA57-YPB100M4，YQSA57-YPB63M4，YQSA57-YPB71M4，YQSA57-YPB80M4，YQSA57-YPB90M4，YQSA57-YPE100M4，YQSA57-YPE63M4，YQSA57-YPE71M4，YQSA57-YPE80M4，YQSA57-YPE90M4，YQSA57-YS100M4，YQSA57-YS63M4，YQSA57-YS71M4，YQSA57-YS80M4，YQSA57-YS90M4，YQSA57-YVB100M4，YQSA57-YVB63M4，YQSA57-YVB71M4，YQSA57-YVB80M4，YQSA57-YVB90M4，YQSA57-YVP100M4，YQSA57-YVP63M4，YQSA57-YVP71M4，YQSA57-YVP80M4，YQSA57-YVP90M4，YQSA57-YVPEJ100M4，YQSA57-YVPEJ63M4，YQSA57-YVPEJ71M4，YQSA57-YVPEJ80M4，YQSA57-YVPEJ90M4，SWA57-Y0.18KW，SWA57-Y0.25KW，SWA57-Y0.37KW，SWA57-Y0.55KW，SWA57-Y0.75KW，SWA57-Y1.1KW，SWA57-Y1.5KW，SWA57-Y100M4，SWA57-Y2.2KW，SWA57-Y3KW，SWA57-Y63M4，SWA57-Y71M4，SWA57-Y80M4，SWA57-Y90M4，SWA57-YB100M4，SWA57-YB63M4，SWA57-YB71M4，SWA57-YB80M4，SWA57-YB90M4，SWA57-YDP100M4，SWA57-YDP63M4，SWA57-YDP71M4，SWA57-YDP80M4，SWA57-YDP90M4，SWA57-YE100M4，SWA57-YE63M4，SWA57-YE71M4，SWA57-YE80M4，SWA57-YE90M4，SWA57-YEJ100M4，SWA57-YEJ63M4，SWA57-YEJ71M4，SWA57-YEJ80M4，SWA57-YEJ90M4，SWA57-YEJB100M4，SWA57-YEJB63M4，SWA57-YEJB71M4，SWA57-YEJB80M4，SWA57-YEJB90M4，SWA57-YP100M4，SWA57-YP63M4，SWA57-YP71M4，SWA57-YP80M4，SWA57-YP90M4，SWA57-YPB100M4，SWA57-YPB63M4，SWA57-YPB71M4，SWA57-YPB80M4，SWA57-YPB90M4，SWA57-YPE100M4，SWA57-YPE63M4，SWA57-YPE71M4，SWA57-YPE80M4，SWA57-YPE90M4，SWA57-YS100M4，SWA57-YS63M4，SWA57-YS71M4，SWA57-YS80M4，SWA57-YS90M4，SWA57-YVB100M4，SWA57-YVB63M4，SWA57-YVB71M4，SWA57-YVB80M4，SWA57-YVB90M4，SWA57-YVP100M4，SWA57-YVP63M4，SWA57-YVP71M4，SWA57-YVP80M4，SWA57-YVP90M4，SWA57-YVPEJ100M4，SWA57-YVPEJ63M4，SWA57-YVPEJ71M4，SWA57-YVPEJ80M4，SWA57-YVPEJ90M4，SA57SF80，SA57SF90，SA57SF100，SA57SF112，SA57SF115，SA57SF140，SA57SF160，SA57SF190。
