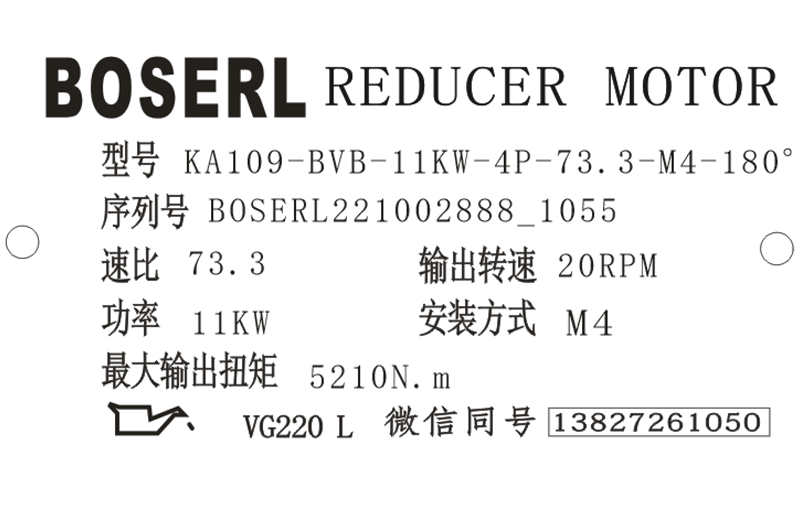

KA109減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA109減速器選型樣本。

KA109-BVB-11KW-4P-73.3-M4-180°

KA：系列代號

109：減速機規格代號

BVB：電機

11KW：電機功率

4P：電機級數

73.3：減速機傳動比

M4：減速機安裝位置

180°：接線盒位置

KA109減速器逆止器安裝：

KA109減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。

KA109減速器潤滑油更換：

由于KA109減速器發熱或KA109減速器油溫過高可能引起燙傷，對KA109減速器進行操作前先冷卻，KA109減速器必須保持一定溫度以避免由于油溫過低引起流動性差影響正常排放。直角減速機

通過放油螺栓和透氣閥進行換油：將一個容器置于放油螺栓下方；卸下油位檢查螺栓、透氣閥與放油螺栓；將潤滑油完全排放；重新擰入放油螺栓；通過透氣閥注入新的同類潤滑油（否則必須與客戶服務聯系），禁止混用不同種類的合成潤滑油；重新擰入油位檢查螺栓與透氣閥。

通過安裝蓋換油：擰開安裝蓋的螺絲，打開安裝蓋提取少許潤滑油，檢查潤滑油的狀況，將潤滑油完全排放，裝上安裝蓋。

通過密封螺栓換油：通過密封孔將潤滑油完全排放；通過檢查孔加入新的同類潤滑油（否則必須與客戶服務部聯系），禁止混用不同種類的合成潤滑油；檢查油位；重新擰緊密封螺栓。空心軸減速機

KA109減速器電機型號：

YQKA107-Y100M4，YQKA107-Y112M4，YQKA107-Y11KWA，YQKA107-Y132M4，YQKA107-Y15KWA，YQKA107-Y160M4，YQKA107-Y18.5KWA，YQKA107-Y180M4，YQKA107-Y200M4，YQKA107-Y225M4，YQKA107-Y22KWA，YQKA107-Y30KWA，YQKA107-Y37KWA，YQKA107-Y3KWA，YQKA107-Y45KWA，YQKA107-Y4KWA，YQKA107-Y5.5KWA，YQKA107-Y7.5KWA，YQKA107-YB100M4，YQKA107-YB112M4，YQKA107-YB132M4，YQKA107-YB160M4，YQKA107-YB180M4，YQKA107-YB200M4，YQKA107-YB225M4，YQKA107-YDP100M4，YQKA107-YDP112M4，YQKA107-YDP132M4，YQKA107-YDP160M4，YQKA107-YDP180M4，YQKA107-YDP200M4，YQKA107-YDP225M4，YQKA107-YE100M4，YQKA107-YE112M4，YQKA107-YE132M4，YQKA107-YE160M4，YQKA107-YE180M4，YQKA107-YE200M4，YQKA107-YE225M4，YQKA107-YEJ100M4，YQKA107-YEJ112M4，YQKA107-YEJ132M4，YQKA107-YEJ160M4，YQKA107-YEJ180M4，YQKA107-YEJ200M4，YQKA107-YEJ225M4，YQKA107-YEJB100M4，YQKA107-YEJB112M4，YQKA107-YEJB132M4，YQKA107-YEJB160M4，YQKA107-YEJB180M4，YQKA107-YEJB200M4，YQKA107-YEJB225M4，YQKA107-YP100M4，YQKA107-YP112M4，YQKA107-YP132M4，YQKA107-YP160M4，YQKA107-YP180M4，YQKA107-YP200M4，YQKA107-YP225M4，YQKA107-YPB100M4，YQKA107-YPB112M4，YQKA107-YPB132M4，YQKA107-YPB160M4，YQKA107-YPB180M4，YQKA107-YPB200M4，YQKA107-YPB225M4，YQKA107-YPE100M4，YQKA107-YPE112M4，YQKA107-YPE132M4，YQKA107-YPE160M4，YQKA107-YPE180M4，YQKA107-YPE200M4，YQKA107-YPE225M4，YQKA107-YS100M4，YQKA107-YS112M4，YQKA107-YS132M4，YQKA107-YS160M4，YQKA107-YS180M4，YQKA107-YS200M4，YQKA107-YS225M4，YQKA107-YVB100M4，YQKA107-YVB112M4，YQKA107-YVB132M4，YQKA107-YVB160M4，YQKA107-YVB180M4，YQKA107-YVB200M4，YQKA107-YVB225M4，YQKA107-YVP100M4，YQKA107-YVP112M4，YQKA107-YVP132M4，YQKA107-YVP160M4，YQKA107-YVP180M4，YQKA107-YVP200M4，YQKA107-YVP225M4，YQKA107-YVPEJ100M4，YQKA107-YVPEJ112M4，YQKA107-YVPEJ132M4，YQKA107-YVPEJ160M4，YQKA107-YVPEJ180M4，YQKA107-YVPEJ200M4，YQKA107-YVPEJ225M4，KWA107-Y100M4，KWA107-Y112M4，KWA107-Y11KWA，KWA107-Y132M4，KWA107-Y15KWA，KWA107-Y160M4，KWA107-Y18.5KWA，KWA107-Y180M4，KWA107-Y200M4，KWA107-Y225M4，KWA107-Y22KWA，KWA107-Y30KWA，KWA107-Y37KWA，KWA107-Y3KWA，KWA107-Y45KWA，KWA107-Y4KWA，KWA107-Y5.5KWA，KWA107-Y7.5KWA，KWA107-YB100M4，KWA107-YB112M4，KWA107-YB132M4，KWA107-YB160M4，KWA107-YB180M4，KWA107-YB200M4，KWA107-YB225M4，KWA107-YDP100M4，KWA107-YDP112M4，KWA107-YDP132M4，KWA107-YDP160M4，KWA107-YDP180M4，KWA107-YDP200M4，KWA107-YDP225M4，KWA107-YE100M4，KWA107-YE112M4，KWA107-YE132M4，KWA107-YE160M4，KWA107-YE180M4，KWA107-YE200M4，KWA107-YE225M4，KWA107-YEJ100M4，KWA107-YEJ112M4，KWA107-YEJ132M4，KWA107-YEJ160M4，KWA107-YEJ180M4，KWA107-YEJ200M4，KWA107-YEJ225M4，KWA107-YEJB100M4，KWA107-YEJB112M4，KWA107-YEJB132M4，KWA107-YEJB160M4，KWA107-YEJB180M4，KWA107-YEJB200M4，KWA107-YEJB225M4，KWA107-YP100M4，KWA107-YP112M4，KWA107-YP132M4，KWA107-YP160M4，KWA107-YP180M4，KWA107-YP200M4，KWA107-YP225M4，KWA107-YPB100M4，KWA107-YPB112M4，KWA107-YPB132M4，KWA107-YPB160M4，KWA107-YPB180M4，KWA107-YPB200M4，KWA107-YPB225M4，KWA107-YPE100M4，KWA107-YPE112M4，KWA107-YPE132M4，KWA107-YPE160M4，KWA107-YPE180M4，KWA107-YPE200M4，KWA107-YPE225M4，KWA107-YS100M4，KWA107-YS112M4，KWA107-YS132M4，KWA107-YS160M4，KWA107-YS180M4，KWA107-YS200M4，KWA107-YS225M4，KWA107-YVB100M4，KWA107-YVB112M4，KWA107-YVB132M4，KWA107-YVB160M4，KWA107-YVB180M4，KWA107-YVB200M4，KWA107-YVB225M4，KWA107-YVP100M4，KWA107-YVP112M4，KWA107-YVP132M4，KWA107-YVP160M4，KWA107-YVP180M4，KWA107-YVP200M4，KWA107-YVP225M4，KWA107-YVPEJ100M4，KWA107-YVPEJ112M4，KWA107-YVPEJ132M4，KWA107-YVPEJ160M4，KWA107-YVPEJ180M4，KWA107-YVPEJ200M4，KWA107-YVPEJ225M4，XDKA107-Y100M4，XDKA107-Y112M4，XDKA107-Y11KWA，XDKA107-Y132M4，XDKA107-Y15KWA，XDKA107-Y160M4，XDKA107-Y18.5KWA，XDKA107-Y180M4，XDKA107-Y200M4，XDKA107-Y225M4，XDKA107-Y22KWA，XDKA107-Y30KWA，XDKA107-Y37KWA，XDKA107-Y3KWA，XDKA107-Y45KWA，XDKA107-Y4KWA，XDKA107-Y5.5KWA，XDKA107-Y7.5KWA，XDKA107-YB100M4，XDKA107-YB112M4，XDKA107-YB132M4，XDKA107-YB160M4，XDKA107-YB180M4，XDKA107-YB200M4，XDKA107-YB225M4，XDKA107-YDP100M4，XDKA107-YDP112M4，XDKA107-YDP132M4，XDKA107-YDP160M4，XDKA107-YDP180M4，XDKA107-YDP200M4，XDKA107-YDP225M4，XDKA107-YE100M4，XDKA107-YE112M4，XDKA107-YE132M4，XDKA107-YE160M4，XDKA107-YE180M4，XDKA107-YE200M4，XDKA107-YE225M4，XDKA107-YEJ100M4，XDKA107-YEJ112M4，XDKA107-YEJ132M4，XDKA107-YEJ160M4，XDKA107-YEJ180M4，XDKA107-YEJ200M4，XDKA107-YEJ225M4，XDKA107-YEJB100M4，XDKA107-YEJB112M4，XDKA107-YEJB132M4，XDKA107-YEJB160M4，XDKA107-YEJB180M4，XDKA107-YEJB200M4，XDKA107-YEJB225M4，XDKA107-YP100M4，XDKA107-YP112M4，XDKA107-YP132M4，XDKA107-YP160M4，XDKA107-YP180M4，XDKA107-YP200M4，XDKA107-YP225M4，XDKA107-YPB100M4，XDKA107-YPB112M4，XDKA107-YPB132M4，XDKA107-YPB160M4，XDKA107-YPB180M4，XDKA107-YPB200M4，XDKA107-YPB225M4，XDKA107-YPE100M4，XDKA107-YPE112M4，XDKA107-YPE132M4，XDKA107-YPE160M4，XDKA107-YPE180M4，XDKA107-YPE200M4，XDKA107-YPE225M4，XDKA107-YS100M4，XDKA107-YS112M4，XDKA107-YS132M4，XDKA107-YS160M4，XDKA107-YS180M4，XDKA107-YS200M4，XDKA107-YS225M4，XDKA107-YVB100M4，XDKA107-YVB112M4，XDKA107-YVB132M4，XDKA107-YVB160M4，XDKA107-YVB180M4，XDKA107-YVB200M4，XDKA107-YVB225M4，XDKA107-YVP100M4，XDKA107-YVP112M4，XDKA107-YVP132M4，XDKA107-YVP160M4，XDKA107-YVP180M4，XDKA107-YVP200M4，XDKA107-YVP225M4，XDKA107-YVPEJ100M4，XDKA107-YVPEJ112M4，XDKA107-YVPEJ132M4，XDKA107-YVPEJ160M4，XDKA107-YVPEJ180M4，XDKA107-YVPEJ200M4，XDKA107-YVPEJ225M4，JCKA107-Y100M4，JCKA107-Y112M4，JCKA107-Y11KWA，JCKA107-Y132M4，JCKA107-Y15KWA，JCKA107-Y160M4，JCKA107-Y18.5KWA，JCKA107-Y180M4，JCKA107-Y200M4，JCKA107-Y225M4，JCKA107-Y22KWA，JCKA107-Y30KWA，JCKA107-Y37KWA，JCKA107-Y3KWA，JCKA107-Y45KWA，JCKA107-Y4KWA，JCKA107-Y5.5KWA，JCKA107-Y7.5KWA，JCKA107-YB100M4，JCKA107-YB112M4，JCKA107-YB132M4，JCKA107-YB160M4，JCKA107-YB180M4，JCKA107-YB200M4，JCKA107-YB225M4，JCKA107-YDP100M4，JCKA107-YDP112M4，JCKA107-YDP132M4，JCKA107-YDP160M4，JCKA107-YDP180M4，JCKA107-YDP200M4，JCKA107-YDP225M4，JCKA107-YE100M4，JCKA107-YE112M4，JCKA107-YE132M4，JCKA107-YE160M4，JCKA107-YE180M4，JCKA107-YE200M4，JCKA107-YE225M4，JCKA107-YEJ100M4，JCKA107-YEJ112M4，JCKA107-YEJ132M4，JCKA107-YEJ160M4，JCKA107-YEJ180M4，JCKA107-YEJ200M4，JCKA107-YEJ225M4，JCKA107-YEJB100M4，JCKA107-YEJB112M4，JCKA107-YEJB132M4，JCKA107-YEJB160M4，JCKA107-YEJB180M4，JCKA107-YEJB200M4，JCKA107-YEJB225M4，JCKA107-YP100M4，JCKA107-YP112M4，JCKA107-YP132M4，JCKA107-YP160M4，JCKA107-YP180M4，JCKA107-YP200M4，JCKA107-YP225M4，JCKA107-YPB100M4，JCKA107-YPB112M4，JCKA107-YPB132M4，JCKA107-YPB160M4，JCKA107-YPB180M4，JCKA107-YPB200M4，JCKA107-YPB225M4，JCKA107-YPE100M4，JCKA107-YPE112M4，JCKA107-YPE132M4，JCKA107-YPE160M4，JCKA107-YPE180M4，JCKA107-YPE200M4，JCKA107-YPE225M4，JCKA107-YS100M4，JCKA107-YS112M4，JCKA107-YS132M4，JCKA107-YS160M4，JCKA107-YS180M4，JCKA107-YS200M4，JCKA107-YS225M4，JCKA107-YVB100M4，JCKA107-YVB112M4，JCKA107-YVB132M4，JCKA107-YVB160M4，JCKA107-YVB180M4，JCKA107-YVB200M4，JCKA107-YVB225M4，JCKA107-YVP100M4，JCKA107-YVP112M4，JCKA107-YVP132M4，JCKA107-YVP160M4，JCKA107-YVP180M4，JCKA107-YVP200M4，JCKA107-YVP225M4，JCKA107-YVPEJ100M4，JCKA107-YVPEJ112M4，JCKA107-YVPEJ132M4，JCKA107-YVPEJ160M4，JCKA107-YVPEJ180M4，JCKA107-YVPEJ200M4，JCKA107-YVPEJ225M4，KA109-Y100M4，KA109-Y112M4，KA109-Y11KWA，KA109-Y132M4，KA109-Y15KWA，KA109-Y160M4，KA109-Y18.5KWA，KA109-Y180M4，KA109-Y200M4，KA109-Y225M4，KA109-Y22KWA，KA109-Y30KWA，KA109-Y37KWA，KA109-Y3KWA，KA109-Y45KWA，KA109-Y4KWA，KA109-Y5.5KWA，KA109-Y7.5KWA，KA109-YB100M4，KA109-YB112M4，KA109-YB132M4，KA109-YB160M4，KA109-YB180M4，KA109-YB200M4，KA109-YB225M4，KA109-YDP100M4，KA109-YDP112M4，KA109-YDP132M4，KA109-YDP160M4，KA109-YDP180M4，KA109-YDP200M4，KA109-YDP225M4，KA109-YE100M4，KA109-YE112M4，KA109-YE132M4，KA109-YE160M4，KA109-YE180M4，KA109-YE200M4，KA109-YE225M4，KA109-YEJ100M4，KA109-YEJ112M4，KA109-YEJ132M4，KA109-YEJ160M4，KA109-YEJ180M4，KA109-YEJ200M4，KA109-YEJ225M4，KA109-YEJB100M4，KA109-YEJB112M4，KA109-YEJB132M4，KA109-YEJB160M4，KA109-YEJB180M4，KA109-YEJB200M4，KA109-YEJB225M4，KA109-YP100M4，KA109-YP112M4，KA109-YP132M4，KA109-YP160M4，KA109-YP180M4，KA109-YP200M4，KA109-YP225M4，KA109-YPB100M4，KA109-YPB112M4，KA109-YPB132M4，KA109-YPB160M4，KA109-YPB180M4，KA109-YPB200M4，KA109-YPB225M4，KA109-YPE100M4，KA109-YPE112M4，KA109-YPE132M4，KA109-YPE160M4，KA109-YPE180M4，KA109-YPE200M4，KA109-YPE225M4，KA109-YS100M4，KA109-YS112M4，KA109-YS132M4，KA109-YS160M4，KA109-YS180M4，KA109-YS200M4，KA109-YS225M4，KA109-YVB100M4，KA109-YVB112M4，KA109-YVB132M4，KA109-YVB160M4，KA109-YVB180M4，KA109-YVB200M4，KA109-YVB225M4，KA109-YVP100M4，KA109-YVP112M4，KA109-YVP132M4，KA109-YVP160M4，KA109-YVP180M4，KA109-YVP200M4，KA109-YVP225M4，KA109-YVPEJ100M4，KA109-YVPEJ112M4，KA109-YVPEJ132M4，KA109-YVPEJ160M4，KA109-YVPEJ180M4，KA109-YVPEJ200M4，KA109-YVPEJ225M4，KA107SF80，KA107SF90，KA107SF100，KA107SF112，KA107SF115，KA107SF140，KA107SF160，KA107SF190。

KA109減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ttgylm.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K109減速機
