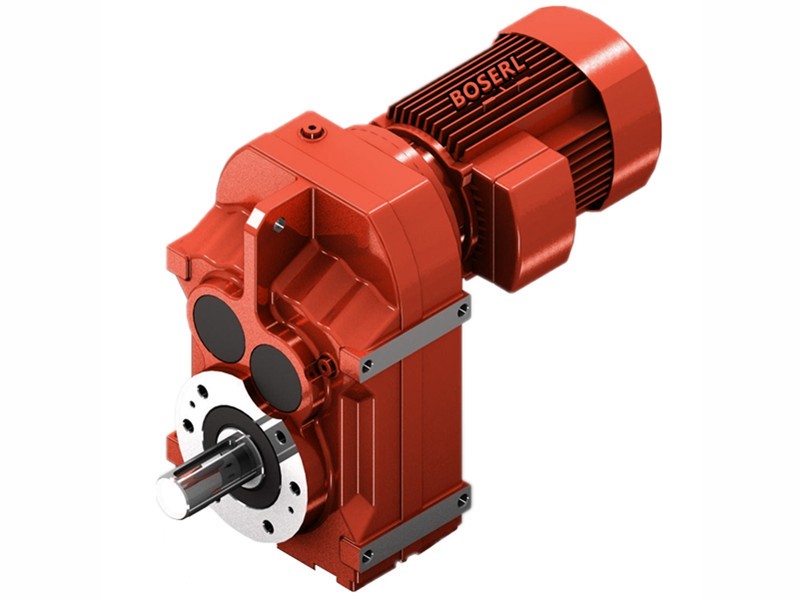

F79減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F79減速器選型樣本。

F79-Y0.75KW-4P-108.46-M5-180°

F：系列代號

79：減速機規格代號

Y：電機

0.75KW：電機功率

4P：電機級數

108.46：減速機傳動比

M5：減速機安裝位置

180°：接線盒位置

F79減速器上的圖標說明：下表列出安裝位置章節中所采用的圖標及其含義

F79減速器安裝所需工具以及材料：

F79減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近！同時還要檢查，注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。F79減速器在出廠時加注了相應油量的潤滑油。由于安裝位置的原因，從油位螺栓觀察，油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時，潤滑油加注油量和透氣閥的位置必須作相應的調整。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將F79減速器的安裝位置改變為M5或M6，或者M5、M6之間的安裝位置，請您咨詢BOSERL公司客戶服務部。若要將F79減速器改裝成M2或M3時，請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕，請您在F79減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須＜109Ω。電化學腐蝕可能發生在不同的金屬物質之間，如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片！還要通過電機上的接地螺栓對F79減速器箱體進行連接接地。F系列減速機

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件（墊片、間隔環）、輸入/輸出元件的緊固裝置、 潤滑油（F79減速器出廠已經自帶潤滑油）、用于緊固螺栓的密封膠（針對帶對中軸肩的輸入軸裝置AD/ZR），所有的標準部件均不是供貨范圍。

F79減速器故障售后服務統籌：

F79減速器異常、無規律的運轉噪音：軸承損壞，檢查潤滑油參見“F79減速器說明書的檢查/維護”章節，更換軸承；齒輪有損失，請向客戶服務部咨詢；潤滑油中有異物，檢查潤滑油參見“F79減速器說明書的檢查/維護”章節；傳動裝置停車，請向客戶服務部咨詢；齒輪減速電機

F79減速器潤滑油泄露：F79減速器密封面密封性能不良，擰緊F79減速器蓋上的螺釘并觀察F79減速器。如果潤滑油繼續泄露，請向客戶服務部咨詢；密封圈損壞，請向客戶服務部咨詢；F79減速器透氣閥失效，給F79減速器透氣參見“F79減速器說明書的安裝位置”章節。

F79減速器潤滑油從透氣閥處滲出：潤滑油太多，調節油量參見“F79減速器說明書的檢查/維護”章節；F79減速器安裝位置錯誤，正確安裝透氣閥參見“F79減速器說明書的安裝位置”章節，調節油位參見“F79減速器說明書的檢查/維護”章節。

F79減速器電機或輸入軸轉動，而輸出軸不轉：F79減速器中的軸輪轂聯接斷裂，將F79減速器或減速電機送來我司修理。

在磨合期（48小時的運轉時間內）油封可能出現短期內的滲油或油脂的現象。對F79減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障，請與BOSERL公司客戶服務部聯系。平行軸斜齒輪減速機

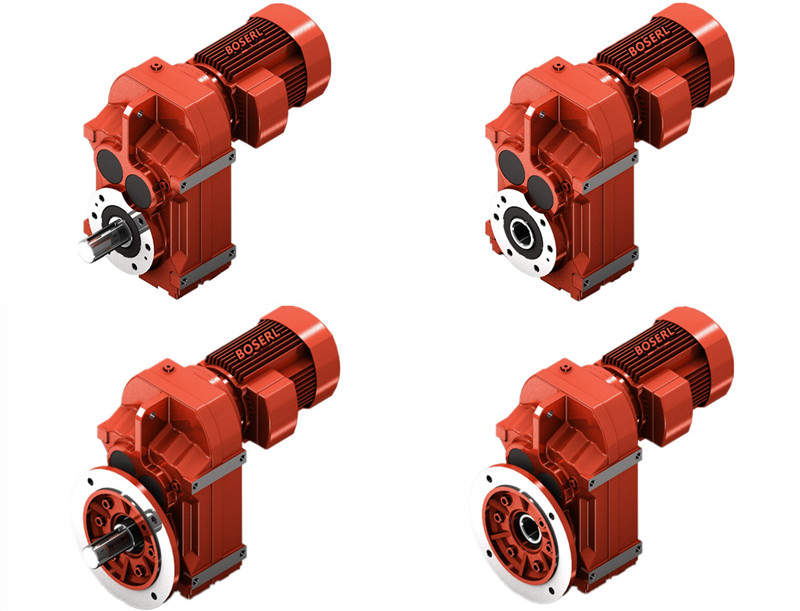

F79減速器型號：

XDF77-Y0.18KW，XDF77-Y0.25KW，XDF77-Y0.37KW，XDF77-Y0.55KW，XDF77-Y0.75KW，XDF77-Y1.1KW，XDF77-Y1.5KW，XDF77-Y100M4，XDF77-Y112M4，XDF77-Y11KW，XDF77-Y132M4，XDF77-Y160M4，XDF77-Y2.2KW，XDF77-Y3KW，XDF77-Y4KW，XDF77-Y5.5KW，XDF77-Y63M4，XDF77-Y7.5KW，XDF77-Y71M4，XDF77-Y80M4，XDF77-Y90M4，XDF77-YB100M4，XDF77-YB112M4，XDF77-YB132M4，XDF77-YB160M4，XDF77-YB63M4，XDF77-YB71M4，XDF77-YB80M4，XDF77-YB90M4，XDF77-YDP100M4，XDF77-YDP112M4，XDF77-YDP132M4，XDF77-YDP160M4，XDF77-YDP63M4，XDF77-YDP71M4，XDF77-YDP80M4，XDF77-YDP90M4，XDF77-YE100M4，XDF77-YE112M4，XDF77-YE132M4，XDF77-YE160M4，XDF77-YE63M4，XDF77-YE71M4，XDF77-YE80M4，XDF77-YE90M4，XDF77-YEJ100M4，XDF77-YEJ112M4，XDF77-YEJ132M4，XDF77-YEJ160M4，XDF77-YEJ63M4，XDF77-YEJ71M4，XDF77-YEJ80M4，XDF77-YEJ90M4，XDF77-YEJB100M4，XDF77-YEJB112M4，XDF77-YEJB132M4，XDF77-YEJB160M4，XDF77-YEJB63M4，XDF77-YEJB71M4，XDF77-YEJB80M4，XDF77-YEJB90M4，XDF77-YP100M4，XDF77-YP112M4，XDF77-YP132M4，XDF77-YP160M4，XDF77-YP63M4，XDF77-YP71M4，XDF77-YP80M4，XDF77-YP90M4，XDF77-YPB100M4，XDF77-YPB112M4，XDF77-YPB132M4，XDF77-YPB160M4，XDF77-YPB63M4，XDF77-YPB71M4，XDF77-YPB80M4，XDF77-YPB90M4，XDF77-YPE100M4，XDF77-YPE112M4，XDF77-YPE132M4，XDF77-YPE160M4，XDF77-YPE63M4，XDF77-YPE71M4，XDF77-YPE80M4，XDF77-YPE90M4，XDF77-YS100M4，XDF77-YS112M4，XDF77-YS132M4，XDF77-YS160M4，XDF77-YS63M4，XDF77-YS71M4，XDF77-YS80M4，XDF77-YS90M4，XDF77-YVB100M4，XDF77-YVB112M4，XDF77-YVB132M4，XDF77-YVB160M4，XDF77-YVB63M4，XDF77-YVB71M4，XDF77-YVB80M4，XDF77-YVB90M4，XDF77-YVP100M4，XDF77-YVP112M4，XDF77-YVP132M4，XDF77-YVP160M4，XDF77-YVP63M4，XDF77-YVP71M4，XDF77-YVP80M4，XDF77-YVP90M4，XDF77-YVPEJ100M4，XDF77-YVPEJ112M4，XDF77-YVPEJ132M4，XDF77-YVPEJ160M4，XDF77-YVPEJ63M4，XDF77-YVPEJ71M4，XDF77-YVPEJ80M4，XDF77-YVPEJ90M4，JCF77-Y0.18KW，JCF77-Y0.25KW，JCF77-Y0.37KW，JCF77-Y0.55KW，JCF77-Y0.75KW，JCF77-Y1.1KW，JCF77-Y1.5KW，JCF77-Y100M4，JCF77-Y112M4，JCF77-Y11KW，JCF77-Y132M4，JCF77-Y160M4，JCF77-Y2.2KW，JCF77-Y3KW，JCF77-Y4KW，JCF77-Y5.5KW，JCF77-Y63M4，JCF77-Y7.5KW，JCF77-Y71M4，JCF77-Y80M4，JCF77-Y90M4，JCF77-YB100M4，JCF77-YB112M4，JCF77-YB132M4，JCF77-YB160M4，JCF77-YB63M4，JCF77-YB71M4，JCF77-YB80M4，JCF77-YB90M4，JCF77-YDP100M4，JCF77-YDP112M4，JCF77-YDP132M4，JCF77-YDP160M4，JCF77-YDP63M4，JCF77-YDP71M4，JCF77-YDP80M4，JCF77-YDP90M4，JCF77-YE100M4，JCF77-YE112M4，JCF77-YE132M4，JCF77-YE160M4，JCF77-YE63M4，JCF77-YE71M4，JCF77-YE80M4，JCF77-YE90M4，JCF77-YEJ100M4，JCF77-YEJ112M4，JCF77-YEJ132M4，JCF77-YEJ160M4，JCF77-YEJ63M4，JCF77-YEJ71M4，JCF77-YEJ80M4，JCF77-YEJ90M4，JCF77-YEJB100M4，JCF77-YEJB112M4，JCF77-YEJB132M4，JCF77-YEJB160M4，JCF77-YEJB63M4，JCF77-YEJB71M4，JCF77-YEJB80M4，JCF77-YEJB90M4，JCF77-YP100M4，JCF77-YP112M4，JCF77-YP132M4，JCF77-YP160M4，JCF77-YP63M4，JCF77-YP71M4，JCF77-YP80M4，JCF77-YP90M4，JCF77-YPB100M4，JCF77-YPB112M4，JCF77-YPB132M4，JCF77-YPB160M4，JCF77-YPB63M4，JCF77-YPB71M4，JCF77-YPB80M4，JCF77-YPB90M4，JCF77-YPE100M4，JCF77-YPE112M4，JCF77-YPE132M4，JCF77-YPE160M4，JCF77-YPE63M4，JCF77-YPE71M4，JCF77-YPE80M4，JCF77-YPE90M4，JCF77-YS100M4，JCF77-YS112M4，JCF77-YS132M4，JCF77-YS160M4，JCF77-YS63M4，JCF77-YS71M4，JCF77-YS80M4，JCF77-YS90M4，JCF77-YVB100M4，JCF77-YVB112M4，JCF77-YVB132M4，JCF77-YVB160M4，JCF77-YVB63M4，JCF77-YVB71M4，JCF77-YVB80M4，JCF77-YVB90M4，JCF77-YVP100M4，JCF77-YVP112M4，JCF77-YVP132M4，JCF77-YVP160M4，JCF77-YVP63M4，JCF77-YVP71M4，JCF77-YVP80M4，JCF77-YVP90M4，JCF77-YVPEJ100M4，JCF77-YVPEJ112M4，JCF77-YVPEJ132M4，JCF77-YVPEJ160M4，JCF77-YVPEJ63M4，JCF77-YVPEJ71M4，JCF77-YVPEJ80M4，JCF77-YVPEJ90M4，FW77-Y0.18KW，FW77-Y0.25KW，FW77-Y0.37KW，FW77-Y0.55KW，FW77-Y0.75KW，FW77-Y1.1KW，FW77-Y1.5KW，FW77-Y100M4，FW77-Y112M4，FW77-Y11KW，FW77-Y132M4，FW77-Y160M4，FW77-Y2.2KW，FW77-Y3KW，FW77-Y4KW，FW77-Y5.5KW，FW77-Y63M4，FW77-Y7.5KW，FW77-Y71M4，FW77-Y80M4，FW77-Y90M4，FW77-YB100M4，FW77-YB112M4，FW77-YB132M4，FW77-YB160M4，FW77-YB63M4，FW77-YB71M4，FW77-YB80M4，FW77-YB90M4，FW77-YDP100M4，FW77-YDP112M4，FW77-YDP132M4，FW77-YDP160M4，FW77-YDP63M4，FW77-YDP71M4，FW77-YDP80M4，FW77-YDP90M4，FW77-YE100M4，FW77-YE112M4，FW77-YE132M4，FW77-YE160M4，FW77-YE63M4，FW77-YE71M4，FW77-YE80M4，FW77-YE90M4，FW77-YEJ100M4，FW77-YEJ112M4，FW77-YEJ132M4，FW77-YEJ160M4，FW77-YEJ63M4，FW77-YEJ71M4，FW77-YEJ80M4，FW77-YEJ90M4，FW77-YEJB100M4，FW77-YEJB112M4，FW77-YEJB132M4，FW77-YEJB160M4，FW77-YEJB63M4，FW77-YEJB71M4，FW77-YEJB80M4，FW77-YEJB90M4，FW77-YP100M4，FW77-YP112M4，FW77-YP132M4，FW77-YP160M4，FW77-YP63M4，FW77-YP71M4，FW77-YP80M4，FW77-YP90M4，FW77-YPB100M4，FW77-YPB112M4，FW77-YPB132M4，FW77-YPB160M4，FW77-YPB63M4，FW77-YPB71M4，FW77-YPB80M4，FW77-YPB90M4，FW77-YPE100M4，FW77-YPE112M4，FW77-YPE132M4，FW77-YPE160M4，FW77-YPE63M4，FW77-YPE71M4，FW77-YPE80M4，FW77-YPE90M4，FW77-YS100M4，FW77-YS112M4，FW77-YS132M4，FW77-YS160M4，FW77-YS63M4，FW77-YS71M4，FW77-YS80M4，FW77-YS90M4，FW77-YVB100M4，FW77-YVB112M4，FW77-YVB132M4，FW77-YVB160M4，FW77-YVB63M4，FW77-YVB71M4，FW77-YVB80M4，FW77-YVB90M4，FW77-YVP100M4，FW77-YVP112M4，FW77-YVP132M4，FW77-YVP160M4，FW77-YVP63M4，FW77-YVP71M4，FW77-YVP80M4，FW77-YVP90M4，FW77-YVPEJ100M4，FW77-YVPEJ112M4，FW77-YVPEJ132M4，FW77-YVPEJ160M4，FW77-YVPEJ63M4，FW77-YVPEJ71M4，FW77-YVPEJ80M4，FW77-YVPEJ90M4，YQF77-Y0.18KW，YQF77-Y0.25KW，YQF77-Y0.37KW，YQF77-Y0.55KW，YQF77-Y0.75KW，YQF77-Y1.1KW，YQF77-Y1.5KW，YQF77-Y100M4，YQF77-Y112M4，YQF77-Y11KW，YQF77-Y132M4，YQF77-Y160M4，YQF77-Y2.2KW，YQF77-Y3KW，YQF77-Y4KW，YQF77-Y5.5KW，YQF77-Y63M4，YQF77-Y7.5KW，YQF77-Y71M4，YQF77-Y80M4，YQF77-Y90M4，YQF77-YB100M4，YQF77-YB112M4，YQF77-YB132M4，YQF77-YB160M4，YQF77-YB63M4，YQF77-YB71M4，YQF77-YB80M4，YQF77-YB90M4，YQF77-YDP100M4，YQF77-YDP112M4，YQF77-YDP132M4，YQF77-YDP160M4，YQF77-YDP63M4，YQF77-YDP71M4，YQF77-YDP80M4，YQF77-YDP90M4，YQF77-YE100M4，YQF77-YE112M4，YQF77-YE132M4，YQF77-YE160M4，YQF77-YE63M4，YQF77-YE71M4，YQF77-YE80M4，YQF77-YE90M4，YQF77-YEJ100M4，YQF77-YEJ112M4，YQF77-YEJ132M4，YQF77-YEJ160M4，YQF77-YEJ63M4，YQF77-YEJ71M4，YQF77-YEJ80M4，YQF77-YEJ90M4，YQF77-YEJB100M4，YQF77-YEJB112M4，YQF77-YEJB132M4，YQF77-YEJB160M4，YQF77-YEJB63M4，YQF77-YEJB71M4，YQF77-YEJB80M4，YQF77-YEJB90M4，YQF77-YP100M4，YQF77-YP112M4，YQF77-YP132M4，YQF77-YP160M4，YQF77-YP63M4，YQF77-YP71M4，YQF77-YP80M4，YQF77-YP90M4，YQF77-YPB100M4，YQF77-YPB112M4，YQF77-YPB132M4，YQF77-YPB160M4，YQF77-YPB63M4，YQF77-YPB71M4，YQF77-YPB80M4，YQF77-YPB90M4，YQF77-YPE100M4，YQF77-YPE112M4，YQF77-YPE132M4，YQF77-YPE160M4，YQF77-YPE63M4，YQF77-YPE71M4，YQF77-YPE80M4，YQF77-YPE90M4，YQF77-YS100M4，YQF77-YS112M4，YQF77-YS132M4，YQF77-YS160M4，YQF77-YS63M4，YQF77-YS71M4，YQF77-YS80M4，YQF77-YS90M4，YQF77-YVB100M4，YQF77-YVB112M4，YQF77-YVB132M4，YQF77-YVB160M4，YQF77-YVB63M4，YQF77-YVB71M4，YQF77-YVB80M4，YQF77-YVB90M4，YQF77-YVP100M4，YQF77-YVP112M4，YQF77-YVP132M4，YQF77-YVP160M4，YQF77-YVP63M4，YQF77-YVP71M4，YQF77-YVP80M4，YQF77-YVP90M4，YQF77-YVPEJ100M4，YQF77-YVPEJ112M4，YQF77-YVPEJ132M4，YQF77-YVPEJ160M4，YQF77-YVPEJ63M4，YQF77-YVPEJ71M4，YQF77-YVPEJ80M4，YQF77-YVPEJ90M4，F79-Y0.18KW，F79-Y0.25KW，F79-Y0.37KW，F79-Y0.55KW，F79-Y0.75KW，F79-Y1.1KW，F79-Y1.5KW，F79-Y100M4，F79-Y112M4，F79-Y11KW，F79-Y132M4，F79-Y160M4，F79-Y2.2KW，F79-Y3KW，F79-Y4KW，F79-Y5.5KW，F79-Y63M4，F79-Y7.5KW，F79-Y71M4，F79-Y80M4，F79-Y90M4，F79-YB100M4，F79-YB112M4，F79-YB132M4，F79-YB160M4，F79-YB63M4，F79-YB71M4，F79-YB80M4，F79-YB90M4，F79-YDP100M4，F79-YDP112M4，F79-YDP132M4，F79-YDP160M4，F79-YDP63M4，F79-YDP71M4，F79-YDP80M4，F79-YDP90M4，F79-YE100M4，F79-YE112M4，F79-YE132M4，F79-YE160M4，F79-YE63M4，F79-YE71M4，F79-YE80M4，F79-YE90M4，F79-YEJ100M4，F79-YEJ112M4，F79-YEJ132M4，F79-YEJ160M4，F79-YEJ63M4，F79-YEJ71M4，F79-YEJ80M4，F79-YEJ90M4，F79-YEJB100M4，F79-YEJB112M4，F79-YEJB132M4，F79-YEJB160M4，F79-YEJB63M4，F79-YEJB71M4，F79-YEJB80M4，F79-YEJB90M4，F79-YP100M4，F79-YP112M4，F79-YP132M4，F79-YP160M4，F79-YP63M4，F79-YP71M4，F79-YP80M4，F79-YP90M4，F79-YPB100M4，F79-YPB112M4，F79-YPB132M4，F79-YPB160M4，F79-YPB63M4，F79-YPB71M4，F79-YPB80M4，F79-YPB90M4，F79-YPE100M4，F79-YPE112M4，F79-YPE132M4，F79-YPE160M4，F79-YPE63M4，F79-YPE71M4，F79-YPE80M4，F79-YPE90M4，F79-YS100M4，F79-YS112M4，F79-YS132M4，F79-YS160M4，F79-YS63M4，F79-YS71M4，F79-YS80M4，F79-YS90M4，F79-YVB100M4，F79-YVB112M4，F79-YVB132M4，F79-YVB160M4，F79-YVB63M4，F79-YVB71M4，F79-YVB80M4，F79-YVB90M4，F79-YVP100M4，F79-YVP112M4，F79-YVP132M4，F79-YVP160M4，F79-YVP63M4，F79-YVP71M4，F79-YVP80M4，F79-YVP90M4，F79-YVPEJ100M4，F79-YVPEJ112M4，F79-YVPEJ132M4，F79-YVPEJ160M4，F79-YVPEJ63M4，F79-YVPEJ71M4，F79-YVPEJ80M4，F79-YVPEJ90M4，F77SF80，F77SF90，F77SF100，F77SF112，F77SF115，F77SF140，F77SF160，F77SF190。
