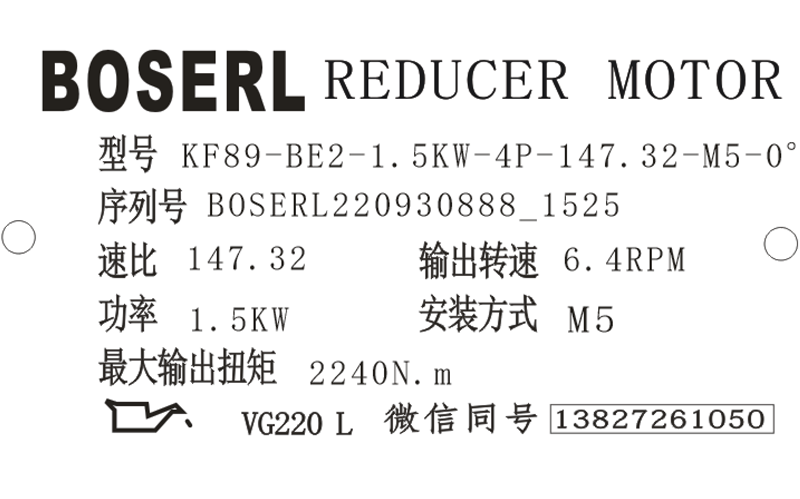

KF89減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KF89減速器選型樣本。

KF89-BE2-1.5KW-4P-147.32-M5-0°

KF：系列代號

89：減速機規格代號

BE2：電機

1.5KW：電機功率

4P：電機級數

147.32：減速機傳動比

M5：減速機安裝位置

0°：接線盒位置

KF89減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動KF89減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

KF89減速器安裝操作的正確方法：

KF89減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

KF89減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的KF89減速器選型樣本”）。直角減速機

KF89減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。

KF89減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列KF89減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的KF89減速器，啟動KF89減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機減速機

KF89減速器型號：

KWF87-Y0.37KWF，KWF87-Y0.55KWF，KWF87-Y0.75KWF，KWF87-Y1.1KWF，KWF87-Y1.5KWF，KWF87-Y100M4，KWF87-Y112M4，KWF87-Y11KWF，KWF87-Y132M4，KWF87-Y15KWF，KWF87-Y160M4，KWF87-Y18.5KWF，KWF87-Y180M4，KWF87-Y2.2KWF，KWF87-Y200M4，KWF87-Y22KWF，KWF87-Y3KWF，KWF87-Y4KWF，KWF87-Y5.5KWF，KWF87-Y7.5KWF，KWF87-Y71M4，KWF87-Y80M4，KWF87-Y90M4，KWF87-YB100M4，KWF87-YB112M4，KWF87-YB132M4，KWF87-YB160M4，KWF87-YB180M4，KWF87-YB200M4，KWF87-YB71M4，KWF87-YB80M4，KWF87-YB90M4，KWF87-YDP100M4，KWF87-YDP112M4，KWF87-YDP132M4，KWF87-YDP160M4，KWF87-YDP180M4，KWF87-YDP200M4，KWF87-YDP71M4，KWF87-YDP80M4，KWF87-YDP90M4，KWF87-YE100M4，KWF87-YE112M4，KWF87-YE132M4，KWF87-YE160M4，KWF87-YE180M4，KWF87-YE200M4，KWF87-YE71M4，KWF87-YE80M4，KWF87-YE90M4，KWF87-YEJ100M4，KWF87-YEJ112M4，KWF87-YEJ132M4，KWF87-YEJ160M4，KWF87-YEJ180M4，KWF87-YEJ200M4，KWF87-YEJ71M4，KWF87-YEJ80M4，KWF87-YEJ90M4，KWF87-YEJB100M4，KWF87-YEJB112M4，KWF87-YEJB132M4，KWF87-YEJB160M4，KWF87-YEJB180M4，KWF87-YEJB200M4，KWF87-YEJB71M4，KWF87-YEJB80M4，KWF87-YEJB90M4，KWF87-YP100M4，KWF87-YP112M4，KWF87-YP132M4，KWF87-YP160M4，KWF87-YP180M4，KWF87-YP200M4，KWF87-YP71M4，KWF87-YP80M4，KWF87-YP90M4，KWF87-YPB100M4，KWF87-YPB112M4，KWF87-YPB132M4，KWF87-YPB160M4，KWF87-YPB180M4，KWF87-YPB200M4，KWF87-YPB71M4，KWF87-YPB80M4，KWF87-YPB90M4，KWF87-YPE100M4，KWF87-YPE112M4，KWF87-YPE132M4，KWF87-YPE160M4，KWF87-YPE180M4，KWF87-YPE200M4，KWF87-YPE71M4，KWF87-YPE80M4，KWF87-YPE90M4，KWF87-YS100M4，KWF87-YS112M4，KWF87-YS132M4，KWF87-YS160M4，KWF87-YS180M4，KWF87-YS200M4，KWF87-YS71M4，KWF87-YS80M4，KWF87-YS90M4，KWF87-YVB100M4，KWF87-YVB112M4，KWF87-YVB132M4，KWF87-YVB160M4，KWF87-YVB180M4，KWF87-YVB200M4，KWF87-YVB71M4，KWF87-YVB80M4，KWF87-YVB90M4，KWF87-YVP100M4，KWF87-YVP112M4，KWF87-YVP132M4，KWF87-YVP160M4，KWF87-YVP180M4，KWF87-YVP200M4，KWF87-YVP71M4，KWF87-YVP80M4，KWF87-YVP90M4，KWF87-YVPEJ100M4，KWF87-YVPEJ112M4，KWF87-YVPEJ132M4，KWF87-YVPEJ160M4，KWF87-YVPEJ180M4，KWF87-YVPEJ200M4，KWF87-YVPEJ71M4，KWF87-YVPEJ80M4，KWF87-YVPEJ90M4，XDKF87-Y0.37KWF，XDKF87-Y0.55KWF，XDKF87-Y0.75KWF，XDKF87-Y1.1KWF，XDKF87-Y1.5KWF，XDKF87-Y100M4，XDKF87-Y112M4，XDKF87-Y11KWF，XDKF87-Y132M4，XDKF87-Y15KWF，XDKF87-Y160M4，XDKF87-Y18.5KWF，XDKF87-Y180M4，XDKF87-Y2.2KWF，XDKF87-Y200M4，XDKF87-Y22KWF，XDKF87-Y3KWF，XDKF87-Y4KWF，XDKF87-Y5.5KWF，XDKF87-Y7.5KWF，XDKF87-Y71M4，XDKF87-Y80M4，XDKF87-Y90M4，XDKF87-YB100M4，XDKF87-YB112M4，XDKF87-YB132M4，XDKF87-YB160M4，XDKF87-YB180M4，XDKF87-YB200M4，XDKF87-YB71M4，XDKF87-YB80M4，XDKF87-YB90M4，XDKF87-YDP100M4，XDKF87-YDP112M4，XDKF87-YDP132M4，XDKF87-YDP160M4，XDKF87-YDP180M4，XDKF87-YDP200M4，XDKF87-YDP71M4，XDKF87-YDP80M4，XDKF87-YDP90M4，XDKF87-YE100M4，XDKF87-YE112M4，XDKF87-YE132M4，XDKF87-YE160M4，XDKF87-YE180M4，XDKF87-YE200M4，XDKF87-YE71M4，XDKF87-YE80M4，XDKF87-YE90M4，XDKF87-YEJ100M4，XDKF87-YEJ112M4，XDKF87-YEJ132M4，XDKF87-YEJ160M4，XDKF87-YEJ180M4，XDKF87-YEJ200M4，XDKF87-YEJ71M4，XDKF87-YEJ80M4，XDKF87-YEJ90M4，XDKF87-YEJB100M4，XDKF87-YEJB112M4，XDKF87-YEJB132M4，XDKF87-YEJB160M4，XDKF87-YEJB180M4，XDKF87-YEJB200M4，XDKF87-YEJB71M4，XDKF87-YEJB80M4，XDKF87-YEJB90M4，XDKF87-YP100M4，XDKF87-YP112M4，XDKF87-YP132M4，XDKF87-YP160M4，XDKF87-YP180M4，XDKF87-YP200M4，XDKF87-YP71M4，XDKF87-YP80M4，XDKF87-YP90M4，XDKF87-YPB100M4，XDKF87-YPB112M4，XDKF87-YPB132M4，XDKF87-YPB160M4，XDKF87-YPB180M4，XDKF87-YPB200M4，XDKF87-YPB71M4，XDKF87-YPB80M4，XDKF87-YPB90M4，XDKF87-YPE100M4，XDKF87-YPE112M4，XDKF87-YPE132M4，XDKF87-YPE160M4，XDKF87-YPE180M4，XDKF87-YPE200M4，XDKF87-YPE71M4，XDKF87-YPE80M4，XDKF87-YPE90M4，XDKF87-YS100M4，XDKF87-YS112M4，XDKF87-YS132M4，XDKF87-YS160M4，XDKF87-YS180M4，XDKF87-YS200M4，XDKF87-YS71M4，XDKF87-YS80M4，XDKF87-YS90M4，XDKF87-YVB100M4，XDKF87-YVB112M4，XDKF87-YVB132M4，XDKF87-YVB160M4，XDKF87-YVB180M4，XDKF87-YVB200M4，XDKF87-YVB71M4，XDKF87-YVB80M4，XDKF87-YVB90M4，XDKF87-YVP100M4，XDKF87-YVP112M4，XDKF87-YVP132M4，XDKF87-YVP160M4，XDKF87-YVP180M4，XDKF87-YVP200M4，XDKF87-YVP71M4，XDKF87-YVP80M4，XDKF87-YVP90M4，XDKF87-YVPEJ100M4，XDKF87-YVPEJ112M4，XDKF87-YVPEJ132M4，XDKF87-YVPEJ160M4，XDKF87-YVPEJ180M4，XDKF87-YVPEJ200M4，XDKF87-YVPEJ71M4，XDKF87-YVPEJ80M4，XDKF87-YVPEJ90M4，YQKF87-Y0.37KWF，YQKF87-Y0.55KWF，YQKF87-Y0.75KWF，YQKF87-Y1.1KWF，YQKF87-Y1.5KWF，YQKF87-Y100M4，YQKF87-Y112M4，YQKF87-Y11KWF，YQKF87-Y132M4，YQKF87-Y15KWF，YQKF87-Y160M4，YQKF87-Y18.5KWF，YQKF87-Y180M4，YQKF87-Y2.2KWF，YQKF87-Y200M4，YQKF87-Y22KWF，YQKF87-Y3KWF，YQKF87-Y4KWF，YQKF87-Y5.5KWF，YQKF87-Y7.5KWF，YQKF87-Y71M4，YQKF87-Y80M4，YQKF87-Y90M4，YQKF87-YB100M4，YQKF87-YB112M4，YQKF87-YB132M4，YQKF87-YB160M4，YQKF87-YB180M4，YQKF87-YB200M4，YQKF87-YB71M4，YQKF87-YB80M4，YQKF87-YB90M4，YQKF87-YDP100M4，YQKF87-YDP112M4，YQKF87-YDP132M4，YQKF87-YDP160M4，YQKF87-YDP180M4，YQKF87-YDP200M4，YQKF87-YDP71M4，YQKF87-YDP80M4，YQKF87-YDP90M4，YQKF87-YE100M4，YQKF87-YE112M4，YQKF87-YE132M4，YQKF87-YE160M4，YQKF87-YE180M4，YQKF87-YE200M4，YQKF87-YE71M4，YQKF87-YE80M4，YQKF87-YE90M4，YQKF87-YEJ100M4，YQKF87-YEJ112M4，YQKF87-YEJ132M4，YQKF87-YEJ160M4，YQKF87-YEJ180M4，YQKF87-YEJ200M4，YQKF87-YEJ71M4，YQKF87-YEJ80M4，YQKF87-YEJ90M4，YQKF87-YEJB100M4，YQKF87-YEJB112M4，YQKF87-YEJB132M4，YQKF87-YEJB160M4，YQKF87-YEJB180M4，YQKF87-YEJB200M4，YQKF87-YEJB71M4，YQKF87-YEJB80M4，YQKF87-YEJB90M4，YQKF87-YP100M4，YQKF87-YP112M4，YQKF87-YP132M4，YQKF87-YP160M4，YQKF87-YP180M4，YQKF87-YP200M4，YQKF87-YP71M4，YQKF87-YP80M4，YQKF87-YP90M4，YQKF87-YPB100M4，YQKF87-YPB112M4，YQKF87-YPB132M4，YQKF87-YPB160M4，YQKF87-YPB180M4，YQKF87-YPB200M4，YQKF87-YPB71M4，YQKF87-YPB80M4，YQKF87-YPB90M4，YQKF87-YPE100M4，YQKF87-YPE112M4，YQKF87-YPE132M4，YQKF87-YPE160M4，YQKF87-YPE180M4，YQKF87-YPE200M4，YQKF87-YPE71M4，YQKF87-YPE80M4，YQKF87-YPE90M4，YQKF87-YS100M4，YQKF87-YS112M4，YQKF87-YS132M4，YQKF87-YS160M4，YQKF87-YS180M4，YQKF87-YS200M4，YQKF87-YS71M4，YQKF87-YS80M4，YQKF87-YS90M4，YQKF87-YVB100M4，YQKF87-YVB112M4，YQKF87-YVB132M4，YQKF87-YVB160M4，YQKF87-YVB180M4，YQKF87-YVB200M4，YQKF87-YVB71M4，YQKF87-YVB80M4，YQKF87-YVB90M4，YQKF87-YVP100M4，YQKF87-YVP112M4，YQKF87-YVP132M4，YQKF87-YVP160M4，YQKF87-YVP180M4，YQKF87-YVP200M4，YQKF87-YVP71M4，YQKF87-YVP80M4，YQKF87-YVP90M4，YQKF87-YVPEJ100M4，YQKF87-YVPEJ112M4，YQKF87-YVPEJ132M4，YQKF87-YVPEJ160M4，YQKF87-YVPEJ180M4，YQKF87-YVPEJ200M4，YQKF87-YVPEJ71M4，YQKF87-YVPEJ80M4，YQKF87-YVPEJ90M4，JCKF87-Y0.37KWF，JCKF87-Y0.55KWF，JCKF87-Y0.75KWF，JCKF87-Y1.1KWF，JCKF87-Y1.5KWF，JCKF87-Y100M4，JCKF87-Y112M4，JCKF87-Y11KWF，JCKF87-Y132M4，JCKF87-Y15KWF，JCKF87-Y160M4，JCKF87-Y18.5KWF，JCKF87-Y180M4，JCKF87-Y2.2KWF，JCKF87-Y200M4，JCKF87-Y22KWF，JCKF87-Y3KWF，JCKF87-Y4KWF，JCKF87-Y5.5KWF，JCKF87-Y7.5KWF，JCKF87-Y71M4，JCKF87-Y80M4，JCKF87-Y90M4，JCKF87-YB100M4，JCKF87-YB112M4，JCKF87-YB132M4，JCKF87-YB160M4，JCKF87-YB180M4，JCKF87-YB200M4，JCKF87-YB71M4，JCKF87-YB80M4，JCKF87-YB90M4，JCKF87-YDP100M4，JCKF87-YDP112M4，JCKF87-YDP132M4，JCKF87-YDP160M4，JCKF87-YDP180M4，JCKF87-YDP200M4，JCKF87-YDP71M4，JCKF87-YDP80M4，JCKF87-YDP90M4，JCKF87-YE100M4，JCKF87-YE112M4，JCKF87-YE132M4，JCKF87-YE160M4，JCKF87-YE180M4，JCKF87-YE200M4，JCKF87-YE71M4，JCKF87-YE80M4，JCKF87-YE90M4，JCKF87-YEJ100M4，JCKF87-YEJ112M4，JCKF87-YEJ132M4，JCKF87-YEJ160M4，JCKF87-YEJ180M4，JCKF87-YEJ200M4，JCKF87-YEJ71M4，JCKF87-YEJ80M4，JCKF87-YEJ90M4，JCKF87-YEJB100M4，JCKF87-YEJB112M4，JCKF87-YEJB132M4，JCKF87-YEJB160M4，JCKF87-YEJB180M4，JCKF87-YEJB200M4，JCKF87-YEJB71M4，JCKF87-YEJB80M4，JCKF87-YEJB90M4，JCKF87-YP100M4，JCKF87-YP112M4，JCKF87-YP132M4，JCKF87-YP160M4，JCKF87-YP180M4，JCKF87-YP200M4，JCKF87-YP71M4，JCKF87-YP80M4，JCKF87-YP90M4，JCKF87-YPB100M4，JCKF87-YPB112M4，JCKF87-YPB132M4，JCKF87-YPB160M4，JCKF87-YPB180M4，JCKF87-YPB200M4，JCKF87-YPB71M4，JCKF87-YPB80M4，JCKF87-YPB90M4，JCKF87-YPE100M4，JCKF87-YPE112M4，JCKF87-YPE132M4，JCKF87-YPE160M4，JCKF87-YPE180M4，JCKF87-YPE200M4，JCKF87-YPE71M4，JCKF87-YPE80M4，JCKF87-YPE90M4，JCKF87-YS100M4，JCKF87-YS112M4，JCKF87-YS132M4，JCKF87-YS160M4，JCKF87-YS180M4，JCKF87-YS200M4，JCKF87-YS71M4，JCKF87-YS80M4，JCKF87-YS90M4，JCKF87-YVB100M4，JCKF87-YVB112M4，JCKF87-YVB132M4，JCKF87-YVB160M4，JCKF87-YVB180M4，JCKF87-YVB200M4，JCKF87-YVB71M4，JCKF87-YVB80M4，JCKF87-YVB90M4，JCKF87-YVP100M4，JCKF87-YVP112M4，JCKF87-YVP132M4，JCKF87-YVP160M4，JCKF87-YVP180M4，JCKF87-YVP200M4，JCKF87-YVP71M4，JCKF87-YVP80M4，JCKF87-YVP90M4，JCKF87-YVPEJ100M4，JCKF87-YVPEJ112M4，JCKF87-YVPEJ132M4，JCKF87-YVPEJ160M4，JCKF87-YVPEJ180M4，JCKF87-YVPEJ200M4，JCKF87-YVPEJ71M4，JCKF87-YVPEJ80M4，JCKF87-YVPEJ90M4，KF89-Y0.37KWF，KF89-Y0.55KWF，KF89-Y0.75KWF，KF89-Y1.1KWF，KF89-Y1.5KWF，KF89-Y100M4，KF89-Y112M4，KF89-Y11KWF，KF89-Y132M4，KF89-Y15KWF，KF89-Y160M4，KF89-Y18.5KWF，KF89-Y180M4，KF89-Y2.2KWF，KF89-Y200M4，KF89-Y22KWF，KF89-Y3KWF，KF89-Y4KWF，KF89-Y5.5KWF，KF89-Y7.5KWF，KF89-Y71M4，KF89-Y80M4，KF89-Y90M4，KF89-YB100M4，KF89-YB112M4，KF89-YB132M4，KF89-YB160M4，KF89-YB180M4，KF89-YB200M4，KF89-YB71M4，KF89-YB80M4，KF89-YB90M4，KF89-YDP100M4，KF89-YDP112M4，KF89-YDP132M4，KF89-YDP160M4，KF89-YDP180M4，KF89-YDP200M4，KF89-YDP71M4，KF89-YDP80M4，KF89-YDP90M4，KF89-YE100M4，KF89-YE112M4，KF89-YE132M4，KF89-YE160M4，KF89-YE180M4，KF89-YE200M4，KF89-YE71M4，KF89-YE80M4，KF89-YE90M4，KF89-YEJ100M4，KF89-YEJ112M4，KF89-YEJ132M4，KF89-YEJ160M4，KF89-YEJ180M4，KF89-YEJ200M4，KF89-YEJ71M4，KF89-YEJ80M4，KF89-YEJ90M4，KF89-YEJB100M4，KF89-YEJB112M4，KF89-YEJB132M4，KF89-YEJB160M4，KF89-YEJB180M4，KF89-YEJB200M4，KF89-YEJB71M4，KF89-YEJB80M4，KF89-YEJB90M4，KF89-YP100M4，KF89-YP112M4，KF89-YP132M4，KF89-YP160M4，KF89-YP180M4，KF89-YP200M4，KF89-YP71M4，KF89-YP80M4，KF89-YP90M4，KF89-YPB100M4，KF89-YPB112M4，KF89-YPB132M4，KF89-YPB160M4，KF89-YPB180M4，KF89-YPB200M4，KF89-YPB71M4，KF89-YPB80M4，KF89-YPB90M4，KF89-YPE100M4，KF89-YPE112M4，KF89-YPE132M4，KF89-YPE160M4，KF89-YPE180M4，KF89-YPE200M4，KF89-YPE71M4，KF89-YPE80M4，KF89-YPE90M4，KF89-YS100M4，KF89-YS112M4，KF89-YS132M4，KF89-YS160M4，KF89-YS180M4，KF89-YS200M4，KF89-YS71M4，KF89-YS80M4，KF89-YS90M4，KF89-YVB100M4，KF89-YVB112M4，KF89-YVB132M4，KF89-YVB160M4，KF89-YVB180M4，KF89-YVB200M4，KF89-YVB71M4，KF89-YVB80M4，KF89-YVB90M4，KF89-YVP100M4，KF89-YVP112M4，KF89-YVP132M4，KF89-YVP160M4，KF89-YVP180M4，KF89-YVP200M4，KF89-YVP71M4，KF89-YVP80M4，KF89-YVP90M4，KF89-YVPEJ100M4，KF89-YVPEJ112M4，KF89-YVPEJ132M4，KF89-YVPEJ160M4，KF89-YVPEJ180M4，KF89-YVPEJ200M4，KF89-YVPEJ71M4，KF89-YVPEJ80M4，KF89-YVPEJ90M4，KF87SF80，KF87SF90，KF87SF100，KF87SF112，KF87SF115，KF87SF140，KF87SF160，KF87SF190。

KF89減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ttgylm.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K89減速機
