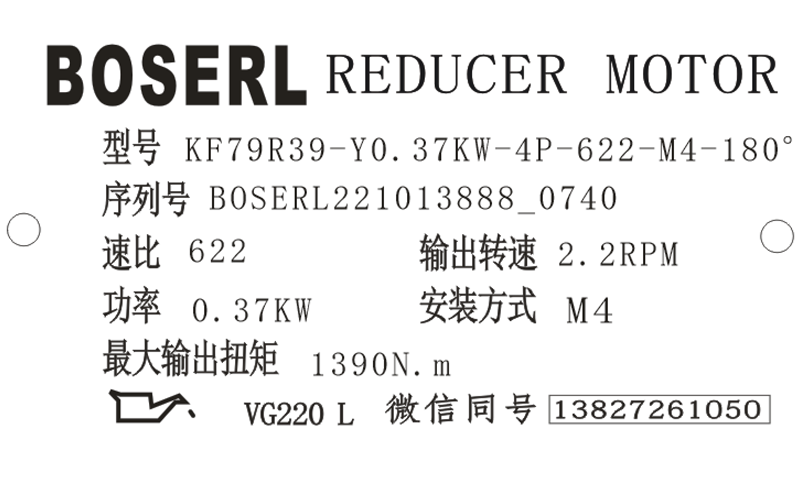

KF79R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KF79R39減速機選型樣本。

KF79R39-Y0.37KW-4P-622-M4-180°

KF/R：系列代號

79/39：減速機規格代號

Y：電機

0.37KW：電機功率

4P：電機級數

622：減速機傳動比

M4：減速機安裝位置

180°：接線盒位置

KF79R39減速機電機安裝方法：

KF79R39減速機電機須由熟悉安全條例及國家法規的專業人員安裝和使用。齒輪減速電機

按照當地規定，電機安裝和操作場所應配備必要的安全防護設備，以避免意外事故。安裝地點請優先選擇符合下列條件的地方：容易做檢查的地方，并盡可能是干燥通風的地方；塵埃少且離爐等熱源較遠的地方。

KF79R39減速機電機接地：為了防止漏電等事故，根據電氣工作物規定，客戶使用前須將線盒內的接地螺釘與地線導通，如EN50014標準的表3所示。

KF79R39減速機電機垂直安裝，轉軸朝下時，必須有防護下落物體和液體的防護罩。確保電機防護等級與環境和氣候條件相匹配，如確保接線盒內不進水。

KF79R39減速機電機電網和電機端子之間的電纜接線必須根據銘牌上的額定電流，符合國家相關安裝標準或EN60204-1標準的要求。

KF79R39減速機電機只用于固定安裝。電機的電纜接頭應符合GB3836.8/EN 60079-15。電纜接頭的防護等級至少應等同于電機的防護等級。電纜應經機械防護后緊固在接線盒上，應符合GB3836.1/EN60079-0和當地的安裝標準的規定。

KF79R39減速機電機當使用連軸器連接輸出軸時，需安裝固定且務必使兩軸平行，底座需以安裝孔徑相適應的螺栓進行安裝，確保齒輪減速電機緊密牢固。

KF79R39減速機電機所有安裝在出力軸上的裝備必須輕裝于軸上，勿使用鐵錘及其它鈍器等敲擊出力軸，避免因安裝遇緊而引起軸承損壞。

KF79R39減速機電機滑輪、鏈輪或齒輪在裝配時盡量靠近出力軸承以減少彎曲應力。應使用不超過出力軸直徑6倍的鏈輪、皮帶輪等與出軸連接。使用時請配合H7公差使用，避免使用中發生異常噪音及軸面受損。

KF79R39減速機電機安裝完成后，可以在出力軸表面涂上適當的防銹油或防銹漆以保護出力軸避免生銹。根據電源電壓，選擇適合的接線方式接好電機線盒內引線，接線盒內接錯線會導致電機燒毀。要根據電機銘牌上額定電流，建議5A/mm2的電流密度選擇合適尺寸電纜線給電機供電。

KF79R39減速機電機使用變頻器給帶剎車功能的齒輪電機供電時，需將剎車線(黃色）單獨提供交流220V供電，供電應與齒輪減速電機供電同步。直角減速機

KF79R39減速機電機溫度高解決方法：

負載過大/頻繁啟停，選擇大容量電機或減輕負載；

風道阻塞，清除風道油垢；

環境溫度增高，太陽下暴曬/附近有其它高溫熱源，應采用遮陽或降溫措施；

電機缺相運行，電源接觸不良，修復觸點及電源線路；

電機缺相運行，線圈斷路，更換定子線圈；

繞組市間或相間短路，電流猛增，更換定子線圈；

電源電壓波動超10%:電流超標，采用穩壓措施，或選用大容量電機；

接法錯誤，Y接法與△接法用反，接法更正；

定轉子擦，更換電機；

轉子斷條更換轉子。伺服電機減速機

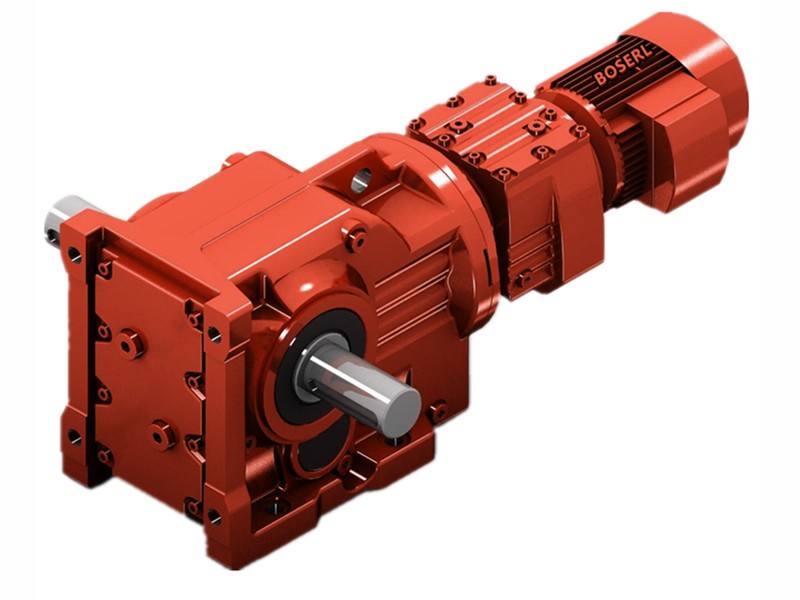

KF79R39減速電機型號：

YQKF77R37-Y63M4，YQKF77R37-Y71M4，YQKF77R37-Y80M4，YQKF77R37-Y90M4，YQKF77RF37-Y0.12KWF，YQKF77RF37-Y0.18KWF，YQKF77RF37-Y0.25KWF，YQKF77RF37-Y0.37KWF，YQKF77RF37-Y0.55KWF，YQKF77RF37-Y0.75KWF，YQKF77RF37-Y1.1KWF，YQKF77RF37-Y1.5KWF，YQKF77RF37-Y63M4，YQKF77RF37-Y71M4，YQKF77RF37-Y80M4，YQKF77RF37-Y90M4，YQKF77RF37-YB63M4，YQKF77RF37-YB71M4，YQKF77RF37-YB80M4，YQKF77RF37-YB90S4，YQKF77RF37-YDP63M4，YQKF77RF37-YDP71M4，YQKF77RF37-YDP80M4，YQKF77RF37-YDP90S4，YQKF77RF37-YE63M4，YQKF77RF37-YE71M4，YQKF77RF37-YE80M4，YQKF77RF37-YE90S4，YQKF77RF37-YEJ63M4，YQKF77RF37-YEJ71M4，YQKF77RF37-YEJ80M4，YQKF77RF37-YEJ90S4，YQKF77RF37-YEJB63M4，YQKF77RF37-YEJB71M4，YQKF77RF37-YEJB80M4，YQKF77RF37-YEJB90S4，YQKF77RF37-YP63M4，YQKF77RF37-YP71M4，YQKF77RF37-YP80M4，YQKF77RF37-YP90S4，YQKF77RF37-YPB63M4，YQKF77RF37-YPB71M4，YQKF77RF37-YPB80M4，YQKF77RF37-YPB90S4，YQKF77RF37-YPE63M4，YQKF77RF37-YPE71M4，YQKF77RF37-YPE80M4，YQKF77RF37-YPE90S4，YQKF77RF37-YS63M4，YQKF77RF37-YS71M4，YQKF77RF37-YS80M4，YQKF77RF37-YS90S4，YQKF77RF37-YVB63M4，YQKF77RF37-YVB71M4，YQKF77RF37-YVB80M4，YQKF77RF37-YVB90S4，YQKF77RF37-YVP63M4，YQKF77RF37-YVP71M4，YQKF77RF37-YVP80M4，YQKF77RF37-YVP90S4，YQKF77RF37-YVPEJ63M4，YQKF77RF37-YVPEJ71M4，YQKF77RF37-YVPEJ80M4，YQKF77RF37-YVPEJ90S4，AKF77R37-Y63M4，AKF77R37-Y71M4，AKF77R37-Y80M4，AKF77R37-Y90M4，AKF77RF37-Y0.12KWF，AKF77RF37-Y0.18KWF，AKF77RF37-Y0.25KWF，AKF77RF37-Y0.37KWF，AKF77RF37-Y0.55KWF，AKF77RF37-Y0.75KWF，AKF77RF37-Y1.1KWF，AKF77RF37-Y1.5KWF，AKF77RF37-Y63M4，AKF77RF37-Y71M4，AKF77RF37-Y80M4，AKF77RF37-Y90M4，AKF77RF37-YB63M4，AKF77RF37-YB71M4，AKF77RF37-YB80M4，AKF77RF37-YB90S4，AKF77RF37-YDP63M4，AKF77RF37-YDP71M4，AKF77RF37-YDP80M4，AKF77RF37-YDP90S4，AKF77RF37-YE63M4，AKF77RF37-YE71M4，AKF77RF37-YE80M4，AKF77RF37-YE90S4，AKF77RF37-YEJ63M4，AKF77RF37-YEJ71M4，AKF77RF37-YEJ80M4，AKF77RF37-YEJ90S4，AKF77RF37-YEJB63M4，AKF77RF37-YEJB71M4，AKF77RF37-YEJB80M4，AKF77RF37-YEJB90S4，AKF77RF37-YP63M4，AKF77RF37-YP71M4，AKF77RF37-YP80M4，AKF77RF37-YP90S4，AKF77RF37-YPB63M4，AKF77RF37-YPB71M4，AKF77RF37-YPB80M4，AKF77RF37-YPB90S4，AKF77RF37-YPE63M4，AKF77RF37-YPE71M4，AKF77RF37-YPE80M4，AKF77RF37-YPE90S4，AKF77RF37-YS63M4，AKF77RF37-YS71M4，AKF77RF37-YS80M4，AKF77RF37-YS90S4，AKF77RF37-YVB63M4，AKF77RF37-YVB71M4，AKF77RF37-YVB80M4，AKF77RF37-YVB90S4，AKF77RF37-YVP63M4，AKF77RF37-YVP71M4，AKF77RF37-YVP80M4，AKF77RF37-YVP90S4，AKF77RF37-YVPEJ63M4，AKF77RF37-YVPEJ71M4，AKF77RF37-YVPEJ80M4，AKF77RF37-YVPEJ90S4，SKF77R37-Y63M4，SKF77R37-Y71M4，SKF77R37-Y80M4，SKF77R37-Y90M4，SKF77RF37-Y0.12KWF，SKF77RF37-Y0.18KWF，SKF77RF37-Y0.25KWF，SKF77RF37-Y0.37KWF，SKF77RF37-Y0.55KWF，SKF77RF37-Y0.75KWF，SKF77RF37-Y1.1KWF，SKF77RF37-Y1.5KWF，SKF77RF37-Y63M4，SKF77RF37-Y71M4，SKF77RF37-Y80M4，SKF77RF37-Y90M4，SKF77RF37-YB63M4，SKF77RF37-YB71M4，SKF77RF37-YB80M4，SKF77RF37-YB90S4，SKF77RF37-YDP63M4，SKF77RF37-YDP71M4，SKF77RF37-YDP80M4，SKF77RF37-YDP90S4，SKF77RF37-YE63M4，SKF77RF37-YE71M4，SKF77RF37-YE80M4，SKF77RF37-YE90S4，SKF77RF37-YEJ63M4，SKF77RF37-YEJ71M4，SKF77RF37-YEJ80M4，SKF77RF37-YEJ90S4，SKF77RF37-YEJB63M4，SKF77RF37-YEJB71M4，SKF77RF37-YEJB80M4，SKF77RF37-YEJB90S4，SKF77RF37-YP63M4，SKF77RF37-YP71M4，SKF77RF37-YP80M4，SKF77RF37-YP90S4，SKF77RF37-YPB63M4，SKF77RF37-YPB71M4，SKF77RF37-YPB80M4，SKF77RF37-YPB90S4，SKF77RF37-YPE63M4，SKF77RF37-YPE71M4，SKF77RF37-YPE80M4，SKF77RF37-YPE90S4，SKF77RF37-YS63M4，SKF77RF37-YS71M4，SKF77RF37-YS80M4，SKF77RF37-YS90S4，SKF77RF37-YVB63M4，SKF77RF37-YVB71M4，SKF77RF37-YVB80M4，SKF77RF37-YVB90S4，SKF77RF37-YVP63M4，SKF77RF37-YVP71M4，SKF77RF37-YVP80M4，SKF77RF37-YVP90S4，SKF77RF37-YVPEJ63M4，SKF77RF37-YVPEJ71M4，SKF77RF37-YVPEJ80M4，SKF77RF37-YVPEJ90S4，XDKF77R37-Y63M4，XDKF77R37-Y71M4，XDKF77R37-Y80M4，XDKF77R37-Y90M4，XDKF77RF37-Y0.12KWF，XDKF77RF37-Y0.18KWF，XDKF77RF37-Y0.25KWF，XDKF77RF37-Y0.37KWF，XDKF77RF37-Y0.55KWF，XDKF77RF37-Y0.75KWF，XDKF77RF37-Y1.1KWF，XDKF77RF37-Y1.5KWF，XDKF77RF37-Y63M4，XDKF77RF37-Y71M4，XDKF77RF37-Y80M4，XDKF77RF37-Y90M4，XDKF77RF37-YB63M4，XDKF77RF37-YB71M4，XDKF77RF37-YB80M4，XDKF77RF37-YB90S4，XDKF77RF37-YDP63M4，XDKF77RF37-YDP71M4，XDKF77RF37-YDP80M4，XDKF77RF37-YDP90S4，XDKF77RF37-YE63M4，XDKF77RF37-YE71M4，XDKF77RF37-YE80M4，XDKF77RF37-YE90S4，XDKF77RF37-YEJ63M4，XDKF77RF37-YEJ71M4，XDKF77RF37-YEJ80M4，XDKF77RF37-YEJ90S4，XDKF77RF37-YEJB63M4，XDKF77RF37-YEJB71M4，XDKF77RF37-YEJB80M4，XDKF77RF37-YEJB90S4，XDKF77RF37-YP63M4，XDKF77RF37-YP71M4，XDKF77RF37-YP80M4，XDKF77RF37-YP90S4，XDKF77RF37-YPB63M4，XDKF77RF37-YPB71M4，XDKF77RF37-YPB80M4，XDKF77RF37-YPB90S4，XDKF77RF37-YPE63M4，XDKF77RF37-YPE71M4，XDKF77RF37-YPE80M4，XDKF77RF37-YPE90S4，XDKF77RF37-YS63M4，XDKF77RF37-YS71M4，XDKF77RF37-YS80M4，XDKF77RF37-YS90S4，XDKF77RF37-YVB63M4，XDKF77RF37-YVB71M4，XDKF77RF37-YVB80M4，XDKF77RF37-YVB90S4，XDKF77RF37-YVP63M4，XDKF77RF37-YVP71M4，XDKF77RF37-YVP80M4，XDKF77RF37-YVP90S4，XDKF77RF37-YVPEJ63M4，XDKF77RF37-YVPEJ71M4，XDKF77RF37-YVPEJ80M4，XDKF77RF37-YVPEJ90S4，NKF77R37-Y63M4，NKF77R37-Y71M4，NKF77R37-Y80M4，NKF77R37-Y90M4，NKF77RF37-Y0.12KWF，NKF77RF37-Y0.18KWF，NKF77RF37-Y0.25KWF，NKF77RF37-Y0.37KWF，NKF77RF37-Y0.55KWF，NKF77RF37-Y0.75KWF，NKF77RF37-Y1.1KWF，NKF77RF37-Y1.5KWF，NKF77RF37-Y63M4，NKF77RF37-Y71M4，NKF77RF37-Y80M4，NKF77RF37-Y90M4，NKF77RF37-YB63M4，NKF77RF37-YB71M4，NKF77RF37-YB80M4，NKF77RF37-YB90S4，NKF77RF37-YDP63M4，NKF77RF37-YDP71M4，NKF77RF37-YDP80M4，NKF77RF37-YDP90S4，NKF77RF37-YE63M4，NKF77RF37-YE71M4，NKF77RF37-YE80M4，NKF77RF37-YE90S4，NKF77RF37-YEJ63M4，NKF77RF37-YEJ71M4，NKF77RF37-YEJ80M4，NKF77RF37-YEJ90S4，NKF77RF37-YEJB63M4，NKF77RF37-YEJB71M4，NKF77RF37-YEJB80M4，NKF77RF37-YEJB90S4，NKF77RF37-YP63M4，NKF77RF37-YP71M4，NKF77RF37-YP80M4，NKF77RF37-YP90S4，NKF77RF37-YPB63M4，NKF77RF37-YPB71M4，NKF77RF37-YPB80M4，NKF77RF37-YPB90S4，NKF77RF37-YPE63M4，NKF77RF37-YPE71M4，NKF77RF37-YPE80M4，NKF77RF37-YPE90S4，NKF77RF37-YS63M4，NKF77RF37-YS71M4，NKF77RF37-YS80M4，NKF77RF37-YS90S4，NKF77RF37-YVB63M4，NKF77RF37-YVB71M4，NKF77RF37-YVB80M4，NKF77RF37-YVB90S4，NKF77RF37-YVP63M4，NKF77RF37-YVP71M4，NKF77RF37-YVP80M4，NKF77RF37-YVP90S4，NKF77RF37-YVPEJ63M4，NKF77RF37-YVPEJ71M4，NKF77RF37-YVPEJ80M4，NKF77RF37-YVPEJ90S4，WKF77R37-Y63M4，WKF77R37-Y71M4，WKF77R37-Y80M4，WKF77R37-Y90M4，WKF77RF37-Y0.12KWF，WKF77RF37-Y0.18KWF，WKF77RF37-Y0.25KWF，WKF77RF37-Y0.37KWF，WKF77RF37-Y0.55KWF，WKF77RF37-Y0.75KWF，WKF77RF37-Y1.1KWF，WKF77RF37-Y1.5KWF，WKF77RF37-Y63M4，WKF77RF37-Y71M4，WKF77RF37-Y80M4，WKF77RF37-Y90M4，WKF77RF37-YB63M4，WKF77RF37-YB71M4，WKF77RF37-YB80M4，WKF77RF37-YB90S4，WKF77RF37-YDP63M4，WKF77RF37-YDP71M4，WKF77RF37-YDP80M4，WKF77RF37-YDP90S4，WKF77RF37-YE63M4，WKF77RF37-YE71M4，WKF77RF37-YE80M4，WKF77RF37-YE90S4，WKF77RF37-YEJ63M4，WKF77RF37-YEJ71M4，WKF77RF37-YEJ80M4，WKF77RF37-YEJ90S4，WKF77RF37-YEJB63M4，WKF77RF37-YEJB71M4，WKF77RF37-YEJB80M4，WKF77RF37-YEJB90S4，WKF77RF37-YP63M4，WKF77RF37-YP71M4，WKF77RF37-YP80M4，WKF77RF37-YP90S4，WKF77RF37-YPB63M4，WKF77RF37-YPB71M4，WKF77RF37-YPB80M4，WKF77RF37-YPB90S4，WKF77RF37-YPE63M4，WKF77RF37-YPE71M4，WKF77RF37-YPE80M4，WKF77RF37-YPE90S4，WKF77RF37-YS63M4，WKF77RF37-YS71M4，WKF77RF37-YS80M4，WKF77RF37-YS90S4，WKF77RF37-YVB63M4，WKF77RF37-YVB71M4，WKF77RF37-YVB80M4，WKF77RF37-YVB90S4，WKF77RF37-YVP63M4，WKF77RF37-YVP71M4，WKF77RF37-YVP80M4，WKF77RF37-YVP90S4，WKF77RF37-YVPEJ63M4，WKF77RF37-YVPEJ71M4，WKF77RF37-YVPEJ80M4，WKF77RF37-YVPEJ90S4，JCKF77R37-Y63M4，JCKF77R37-Y71M4，JCKF77R37-Y80M4，JCKF77R37-Y90M4，JCKF77RF37-Y0.12KWF，JCKF77RF37-Y0.18KWF，JCKF77RF37-Y0.25KWF，JCKF77RF37-Y0.37KWF，JCKF77RF37-Y0.55KWF，JCKF77RF37-Y0.75KWF，JCKF77RF37-Y1.1KWF，JCKF77RF37-Y1.5KWF，JCKF77RF37-Y63M4，JCKF77RF37-Y71M4，JCKF77RF37-Y80M4，JCKF77RF37-Y90M4，JCKF77RF37-YB63M4，JCKF77RF37-YB71M4，JCKF77RF37-YB80M4，JCKF77RF37-YB90S4，JCKF77RF37-YDP63M4，JCKF77RF37-YDP71M4，JCKF77RF37-YDP80M4，JCKF77RF37-YDP90S4，JCKF77RF37-YE63M4，JCKF77RF37-YE71M4，JCKF77RF37-YE80M4，JCKF77RF37-YE90S4，JCKF77RF37-YEJ63M4，JCKF77RF37-YEJ71M4，JCKF77RF37-YEJ80M4，JCKF77RF37-YEJ90S4，JCKF77RF37-YEJB63M4，JCKF77RF37-YEJB71M4，JCKF77RF37-YEJB80M4，JCKF77RF37-YEJB90S4，JCKF77RF37-YP63M4，JCKF77RF37-YP71M4，JCKF77RF37-YP80M4，JCKF77RF37-YP90S4，JCKF77RF37-YPB63M4，JCKF77RF37-YPB71M4，JCKF77RF37-YPB80M4，JCKF77RF37-YPB90S4，JCKF77RF37-YPE63M4，JCKF77RF37-YPE71M4，JCKF77RF37-YPE80M4，JCKF77RF37-YPE90S4，JCKF77RF37-YS63M4，JCKF77RF37-YS71M4，JCKF77RF37-YS80M4，JCKF77RF37-YS90S4，JCKF77RF37-YVB63M4，JCKF77RF37-YVB71M4，JCKF77RF37-YVB80M4，JCKF77RF37-YVB90S4，JCKF77RF37-YVP63M4，JCKF77RF37-YVP71M4，JCKF77RF37-YVP80M4，JCKF77RF37-YVP90S4，JCKF77RF37-YVPEJ63M4，JCKF77RF37-YVPEJ71M4，JCKF77RF37-YVPEJ80M4，JCKF77RF37-YVPEJ90S4，KWF77RW37-Y63M4，KWF77RW37-Y71M4，KWF77RW37-Y80M4，KWF77RW37-Y90M4，KWF77RWF37-Y0.12KWF，KWF77RWF37-Y0.18KWF，KWF77RWF37-Y0.25KWF，KWF77RWF37-Y0.37KWF，KWF77RWF37-Y0.55KWF，KWF77RWF37-Y0.75KWF，KWF77RWF37-Y1.1KWF，KWF77RWF37-Y1.5KWF，KWF77RWF37-Y63M4，KWF77RWF37-Y71M4，KWF77RWF37-Y80M4，KWF77RWF37-Y90M4，KWF77RWF37-YB63M4，KWF77RWF37-YB71M4，KWF77RWF37-YB80M4，KWF77RWF37-YB90S4，KWF77RWF37-YDP63M4，KWF77RWF37-YDP71M4，KWF77RWF37-YDP80M4，KWF77RWF37-YDP90S4，KWF77RWF37-YE63M4，KWF77RWF37-YE71M4，KWF77RWF37-YE80M4，KWF77RWF37-YE90S4，KWF77RWF37-YEJ63M4，KWF77RWF37-YEJ71M4，KWF77RWF37-YEJ80M4，KWF77RWF37-YEJ90S4，KWF77RWF37-YEJB63M4，KWF77RWF37-YEJB71M4，KWF77RWF37-YEJB80M4，KWF77RWF37-YEJB90S4，KWF77RWF37-YP63M4，KWF77RWF37-YP71M4，KWF77RWF37-YP80M4，KWF77RWF37-YP90S4，KWF77RWF37-YPB63M4，KWF77RWF37-YPB71M4，KWF77RWF37-YPB80M4，KWF77RWF37-YPB90S4，KWF77RWF37-YPE63M4，KWF77RWF37-YPE71M4，KWF77RWF37-YPE80M4，KWF77RWF37-YPE90S4，KWF77RWF37-YS63M4，KWF77RWF37-YS71M4，KWF77RWF37-YS80M4，KWF77RWF37-YS90S4，KWF77RWF37-YVB63M4，KWF77RWF37-YVB71M4，KWF77RWF37-YVB80M4，KWF77RWF37-YVB90S4，KWF77RWF37-YVP63M4，KWF77RWF37-YVP71M4，KWF77RWF37-YVP80M4，KWF77RWF37-YVP90S4，KWF77RWF37-YVPEJ63M4，KWF77RWF37-YVPEJ71M4，KWF77RWF37-YVPEJ80M4，KWF77RWF37-YVPEJ90S4，KF79R39-Y63M4，KF79R39-Y71M4，KF79R39-Y80M4，KF79R39-Y90M4，KF79RF39-Y0.12KWF，KF79RF39-Y0.18KWF，KF79RF39-Y0.25KWF，KF79RF39-Y0.39KWF，KF79RF39-Y0.55KWF，KF79RF39-Y0.75KWF，KF79RF39-Y1.1KWF，KF79RF39-Y1.5KWF，KF79RF39-Y63M4，KF79RF39-Y71M4，KF79RF39-Y80M4，KF79RF39-Y90M4，KF79RF39-YB63M4，KF79RF39-YB71M4，KF79RF39-YB80M4，KF79RF39-YB90S4，KF79RF39-YDP63M4，KF79RF39-YDP71M4，KF79RF39-YDP80M4，KF79RF39-YDP90S4，KF79RF39-YE63M4，KF79RF39-YE71M4，KF79RF39-YE80M4，KF79RF39-YE90S4，KF79RF39-YEJ63M4，KF79RF39-YEJ71M4，KF79RF39-YEJ80M4，KF79RF39-YEJ90S4，KF79RF39-YEJB63M4，KF79RF39-YEJB71M4，KF79RF39-YEJB80M4，KF79RF39-YEJB90S4，KF79RF39-YP63M4，KF79RF39-YP71M4，KF79RF39-YP80M4，KF79RF39-YP90S4，KF79RF39-YPB63M4，KF79RF39-YPB71M4，KF79RF39-YPB80M4，KF79RF39-YPB90S4，KF79RF39-YPE63M4，KF79RF39-YPE71M4，KF79RF39-YPE80M4，KF79RF39-YPE90S4，KF79RF39-YS63M4，KF79RF39-YS71M4，KF79RF39-YS80M4，KF79RF39-YS90S4，KF79RF39-YVB63M4，KF79RF39-YVB71M4，KF79RF39-YVB80M4，KF79RF39-YVB90S4，KF79RF39-YVP63M4，KF79RF39-YVP71M4，KF79RF39-YVP80M4，KF79RF39-YVP90S4，KF79RF39-YVPEJ63M4，KF79RF39-YVPEJ71M4，KF79RF39-YVPEJ80M4，KF79RF39-YVPEJ90S4。
